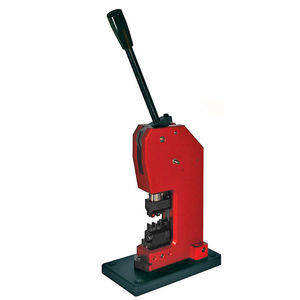

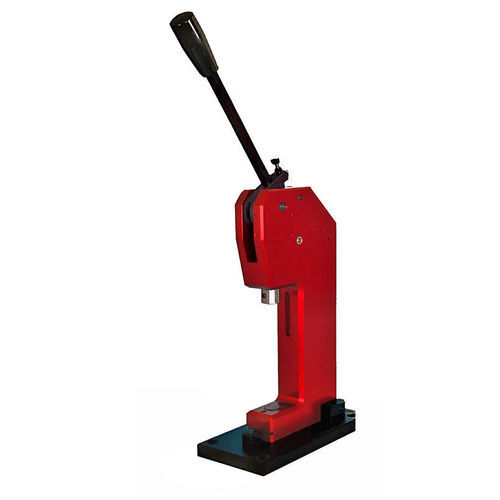

Manual press CR10/H50joiningassemblycrimping
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Function
- joining, assembly, crimping, test
- Applications
- for industrial applications, for electrical connectors
- Structure
- toggle
- Control
- hand-operated
- Force
12 tf
- Opening
22 mm
(1 in)- Stroke
17 mm
(0.669 in)- Weight
3 kg
(7 lb)- Overall height
Max.: 13 cm
(5 in)Min.: 13 cm
(5 in)
Description
Product overview
Applications
Dimension table
1: 22 mm
2: 17 mm
3: 126 mm
Weight: 3.2 kg
Technical specifications
Options and accessories
- Connect components with consistent precision and speed using minimal muscle power.
- Ergonomic working movements with increased pressing force.
- Easy and precise positioning of workpieces in the tools.
- Interchangeable tool holder compatible with many tool manufacturers.
- Integrated return-stroke lock and optional stroke counter.
Applications
- Crimping and pressing of electrical connectors and terminals
- Assembly and joining operations in production cells
- Tooling and fixture testing in R&D and labs
- Small-series and manual production tasks
Dimension table
1: 22 mm
2: 17 mm
3: 126 mm
Weight: 3.2 kg
Technical specifications
- Model: CR10/H50
- Press type: Manual toggle press
- Operation: Manually operated
- Overhang: 22 mm
- Installation height: 126 mm
- Stroke: 17 mm
- Max. press force at lower dead centre: 12 kN
- Lever operating force, allowed maximum: 200 N
- Location bore: Ø10 H7
- Clamped piece: Clamping screw
- Direction type: Circular
- Twist-free guide: Twist-free with play ±0.1 mm
- Hand lever position: Centre
- Standard colour: Red anodised
- Weight: 3.2 kg
Options and accessories
- Custom tool holders manufactured to fit your crimping tools
- Interchangeable holders for rapid tool changes
- Optional stroke counter for process tracking
- Compatibility with many tool manufacturers to simplify integration
