Hydro-pneumatic press 500 HPPV

formingcompressionassembly

Product

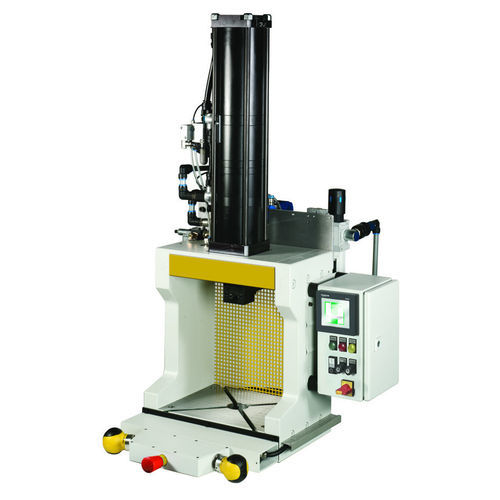

Hydro-pneumatic H-frame press HPPV delivering 500 kN on the power stroke. Designed for industrial pressing, assembly and forming tasks where precise force application and a compact footprint are required.

Dimension table
A2: 826
B: 871
C: 670
D: 450
E: 185
X: 360
Y: 1660

Specs

• Press type: H-frame hydro-pneumatic press
• Control unit: optional
• Installation height: 360 mm
• Installation width: 450 mm
• Stroke / Power stroke: 50 mm / 6 mm (options available)
• Pressing force (power stroke): 500 kN
• Pressing force (approach): 14 kN
• Pull-out force (return stroke): 13 kN
• Force generation: Hydropneumatic cylinder
• Operating pressure: 6 bar
• Location bore: Ø 40 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Pillar guide
• Connection hose: 1/2''
• Two-hand safety control ZS08: optional
• Two-hand safety control SpiceFlex: optional
• Standard color: RAL 7035
• Weight: 520 kg

Base / Options

• X1 = 50 mm stroke with 6 mm power stroke
• X1 = 100 mm stroke with 6 mm power stroke
• X1 = 50 mm stroke with 12 mm power stroke
• X1 = 100 mm stroke with 12 mm power stroke (custom stroke length on request)

Accessories

• Two-hand safety control ES07
• SpiceFlex modular
• SE Series for simple two-hand safety control
• Wired foot switch with plug connection for SpiceFlex / D-Con
• Two-hand safety control ZS08

Technical specifications

• Press type: H-frame hydro-pneumatic presses
• Pressing force (power stroke): 500 kN
• Stroke / Power stroke: 50 mm / 6 mm (options available)
• Pressing force (approach): 14 kN
• Pull-out force (return stroke): 13 kN
• Force generation: Hydropneumatic cylinder
• Operating pressure: 6 bar
• Installation height: 360 mm
• Installation width: 450 mm
• Location bore: Ø 40 H7
• Clamped piece: Removable clamped piece
• Guide: Pillar guide (twist-free)
• Connection hose: 1/2''
• Two-hand safety control options: ZS08 (optional), SpiceFlex (optional), ES07
• Standard color: RAL 7035
• Weight: 520 kg
