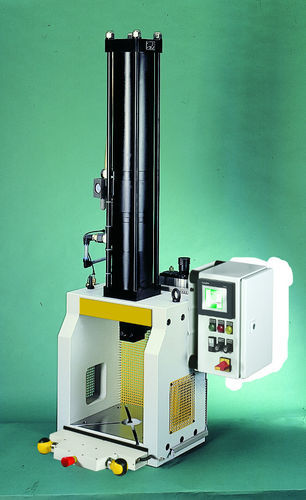

Hydro-pneumatic press 300 HPPS

H-frame

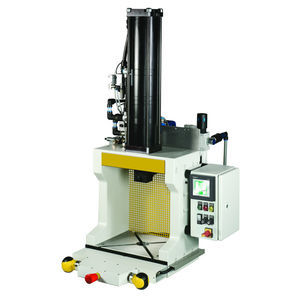

Product overview
300 kN HPPS — H-frame hydro-pneumatic press for industrial pressing applications. Key features include a hydropneumatic cylinder force generation and configurable stroke variants.

Dimension table
A2: 786
B: 786
C: 601
D: 380
E: 165
X: 338
Y: 1486

Specifications

• Press type: H-frame hydro-pneumatic press
• Operation: Control (optional)
• Installation height: 338 mm
• Installation width: 380 mm
• Stroke / power stroke: 50 mm / 6 mm (options available)
• Pressing force (power stroke): 300 kN
• Pressing force (approach): 11 kN
• Pull-out force (return stroke): 10 kN
• Force generation: Hydropneumatic cylinder
• Operating pressure: 6 bar
• Location bore: Ø 32 H7
• Clamped piece: Removable clamped piece
• Guide: Pillar guide (twist-free)
• Connection hose: 1/2''
• Two-hand safety control ZS08: Optional
• Two-hand safety control SpiceFlex: Optional
• Standard color: RAL 7035
• Weight: 420 kg

Base / Available stroke variants (from supplies)

• X1 = 50 mm stroke with 12 mm power stroke
• X1 = 100 mm stroke with 12 mm power stroke (custom stroke length on request)
• X1 = 50 mm stroke with 6 mm power stroke
• X1 = 100 mm stroke with 6 mm power stroke

Accessories

• SE Series for simple two-hand safety control
• Wired foot switch with plug connection for SpiceFlex / D-Con
• Two-hand safety control ZS08
• Two-hand safety control ES07
• SpiceFlex modular

Technical characteristics

• Press type: H-frame hydro-pneumatic press
• Pressing force (power stroke): 300 kN
• Pressing force (approach): 11 kN
• Pull-out force (return stroke): 10 kN
• Stroke / power stroke: 50 mm / 6 mm (options available)
• Force generation: Hydropneumatic cylinder
• Operating pressure: 6 bar
• Location bore: Ø 32 H7
• Clamped piece: Removable clamped piece
• Guide: Pillar guide (twist-free)
• Connection hose: 1/2''
• Two-hand safety controls: ZS08 and SpiceFlex (optional)
• Standard color: RAL 7035
• Weight: 420 kg
• Installation height: 338 mm
• Installation width: 380 mm
