Electric captive reel GTEfor cablesfor vehiclesfor workshops
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Type
- for cables
- Products applications
- for vehicles, for workshops
- Other characteristics
- compact, single-phase, hand-held
- Capacity
Max.: 180 kg
(396.83 lb)Min.: 47 kg
(103.62 lb)- Cable length
Max.: 10 m
(32'09" )Min.: 0 m
(0'00" )
Description
Overview

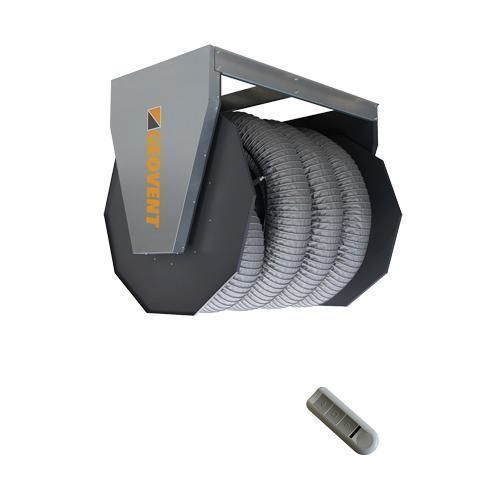

The Geovent GTE ø250 hose reel is an electric-driven solution for extraction of exhaust gases and welding fumes from vehicles and heavy equipment. It features a tubular motor for controlled retraction and deployment, remote-control operation, automatic start/stop and a compact design that keeps the hose off the floor. The reel is constructed in galvanised steel with a powder-coated finish and can be configured with various hose types, including high-temperature options for demanding environments.
What do you get?
Key features
Technical data
Hose diameter: ø80 – ø250 mm
Max. air volume: 2,500 m³/h
Voltage: 230 VAC / 50 Hz
Weight: 47 – 180 kg
Supported hose length: up to 10 m (depending on hose type)
Applications
Specifications / technical specifications
The Geovent GTE ø250 hose reel is an electric-driven solution for extraction of exhaust gases and welding fumes from vehicles and heavy equipment. It features a tubular motor for controlled retraction and deployment, remote-control operation, automatic start/stop and a compact design that keeps the hose off the floor. The reel is constructed in galvanised steel with a powder-coated finish and can be configured with various hose types, including high-temperature options for demanding environments.
What do you get?
- Electric-driven hose reel for efficient exhaust gas extraction.
Key features
- Remote control for extend/retract operation.
- Suitable for high-temperature applications (options for high-temp hoses and special nozzles).
- Space-saving design with automatic hose retraction to keep the floor clear.
- Supports hose diameters up to ø250 mm and lengths up to 10 m (depending on hose type).
- Automatic start/stop functionality for energy savings and simplified operation.
- Galvanised steel construction with powder-coated finish for industrial environments.
- Tubular electric motor enabling controlled retraction and reliable operation.
- Multiple nozzle options and customizable hose/coupling configurations.
Technical data
Hose diameter: ø80 – ø250 mm
Max. air volume: 2,500 m³/h
Voltage: 230 VAC / 50 Hz
Weight: 47 – 180 kg
Supported hose length: up to 10 m (depending on hose type)
Applications
- Automotive workshops (including turbocharged vehicles).
- Commercial and industrial vehicle exhaust extraction (trucks, loaders, tracked vehicles).
- Military and heavy-duty equipment exhaust extraction and high-temperature environments.
Specifications / technical specifications
- Series / Model: GTE
- Hose diameter range: ø80 – ø250 mm
- Maximum air volume: 2,500 m³/h
- Voltage: 230 VAC / 50 Hz
- Weight range: 47 – 180 kg (depending on configuration)
- Reel width example: 1,700 mm (typical configuration)
- Drive: Tubular electric motor with remote control
- Functions: Automatic start/stop, controlled retraction
- Construction: Galvanised steel, powder-coated finish
- Options: High-temperature hoses, multiple nozzle choices, customised hose/coupling configurations
