In-line extraction arm Smart

flexibletelescopicfor gas

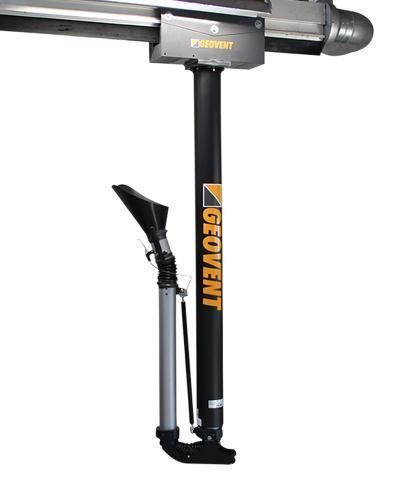

Product overview The Smart Exhaust Arm is a telescopic extraction arm for safe, efficient removal of exhaust gases from cars and motorcycles. Its highly flexible, extendable design adapts to vehicles at ground level and on lifts. An integrated automatic valve opens during use to maintain optimal airflow. The arm can be mounted on a channel duct system to allow positioning at multiple workstations.

Key features

• Telescopic, highly flexible design for easy positioning.
• Integrated automatic valve that opens during operation.
• No direct attachment to the exhaust pipe, reducing risk of damage.
• Suitable for cars and motorcycles, on ground or lift.
• Quick adjustment to fit various exhaust diameters.
• Compatible with channel duct systems for multi-location setups.

Technical data (from product table) Nozzle diameter: ø100 or ø125
Length (adjustable): 2,300–3,665 mm
Operating temperature: 110°C continuous, short-term up to 150°C
Weight: 30 kg

Technical specifications

• Model name: Smart Exhaust Arm
• Nozzle diameter: ø100 or ø125
• Length (adjustable, telescopic): 2,300–3,665 mm
• Operating temperature: 110°C continuous, short-term up to 150°C
• Weight: 30 kg
• Automatic valve: built-in valve opens during use to ensure optimal airflow
• Design: telescopic and highly flexible for fast, precise positioning
• Mounting / compatibility: mountable on channel duct systems for multi-location configurations
• Applications: extraction of exhaust gases from cars and motorcycles; suitable for ground-level use and vehicles on lifts
• Benefit: avoids direct nozzle attachment to exhaust pipe, reducing risk of damage
