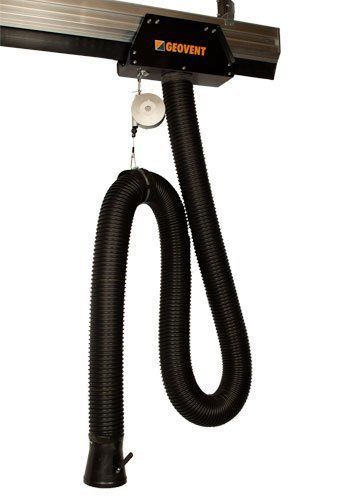

Rigid air duct

roundcircularEPDM

Overview
The Channel Duct Type 35 is a ceiling-mounted extraction system for removal of exhaust gases and welding fumes in large workshops and assembly lines. The system supports duct lengths up to 100 m and includes a movable trolley for flexible extraction along linear work areas. Ceiling installation reduces floor clutter and facilitates integration in production lines.

What do you get?

• Flexible extraction for exhaust gases and welding fumes.
• Movable trolley for adaptable positioning across work bays.
• Ceiling-mounted installation to minimize floor obstruction and installation footprint.
• Options for remote-controlled trolley and automatic exhaust disconnection.
• Low-friction silicone or EPDM sealing lips; silicone option rated to 180°C.
• Availability in lengths up to 100 m for extensive coverage.
• Capability to configure multiple trolleys to match layout requirements.

Product information
The Channel Duct Type 35 is designed for ceiling mounting to free floor space while providing long continuous duct runs suitable for large facilities. The mobile trolley runs on eight low-friction nylon wheels for smooth movement. Sealing lips in silicone or EPDM reduce friction and provide sealing; the silicone variant resists temperatures up to 180°C. Stabilization wires allow adaptation to different ceiling structures. Accessories include electric drive units for automated trolley travel and pneumatic or exhaust-disconnection fittings for quick hose detachment. The system enables targeted extraction to improve air quality and optimize workflow in industrial environments.

Caractéristiques / spécifications techniques

• Model: Channel Duct Type 35
• Maximum duct length: L = 100 m
• Channel area: 260 cm²
• Connection (duct): ø160 mm and ø200 mm
• Weight: 7 kg / m
• Trolley: eight easy-running nylon wheels
• Sealing lips: Silicone or EPDM (silicone option temperature rating up to 180°C)
