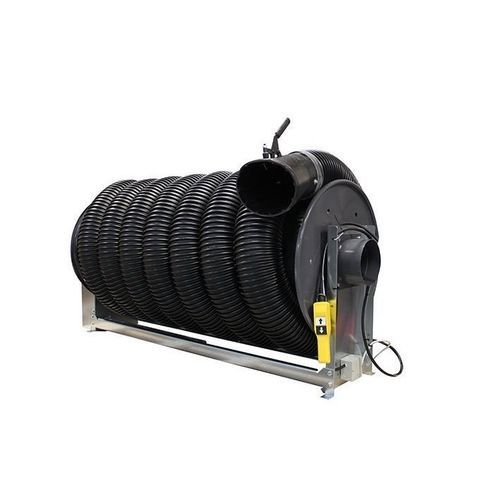

Hose reel GTS

spring-loadedfor extractor systemsexhaust extraction hose

Overview
The GTS hose reel is a spring-driven solution for efficient exhaust extraction. It can be upgraded to an electric-driven model and is designed for connection to central extraction systems or Geovent fans. The reel is supplied with a GeoFlex exhaust hose suitable for high-temperature applications and is intended for vehicles (cars, trucks), construction equipment and military machinery. Accessories such as automatic start/stop switches and various nozzles are available.

What do you get?

• Spring-driven reel, easily upgradeable to electric drive.

Key features

• Available widths: 750 mm and 1000 mm.
• Hose diameters: ø80, ø100, ø125 and ø150 mm.
• Hose lengths up to 10 m.
• GeoFlex high-temperature exhaust hose option.
• Compatible with central extraction systems and Geovent fans via a dedicated flange.
• Available accessories: automatic start/stop switches, multiple nozzle types and fittings.

Applications
Designed for exhaust extraction in workshops and garages as well as heavy-duty contexts: passenger cars, trucks, turbocharged vehicles, construction equipment and military machinery.

Technical data (table)
Dimension (hoses): ø80 – ø150 mm
Max. air volume: 2,500 m³/h
Weight: 47 – 180 kg

Technical specifications

• Series / model: GTS
• Operation: spring driven (upgradeable to electric)
• Widths available: 750 mm, 1000 mm
• Hose diameters supported: ø80, ø100, ø125, ø150 mm
• Max hose length: up to 10 m
• Max. air volume: 2,500 m³/h
• Weight range: 47 – 180 kg
• Hose option: GeoFlex high-temperature exhaust hose available
• Compatibility: central extraction systems and Geovent fans (flanged connection)
• Available accessories: automatic start/stop, multiple nozzle types
