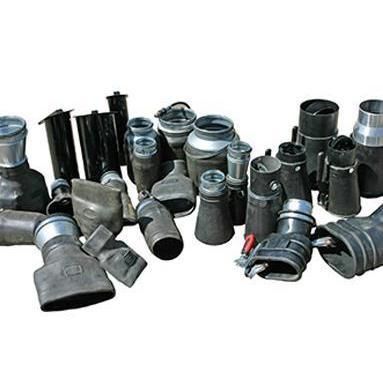

Truck extraction nozzle

exhaust gasvehicle exhaust gaswith mechanical clamp

Overview
Geovent supplies a complete range of exhaust nozzles for extraction of vehicle exhaust gases in garages, workshops, engine test stands and other indoor vehicle applications. The portfolio covers multiple nozzle shapes and hose variants to match different exhaust geometries and workshop workflows.

Key features

• Adapted to different vehicle sizes and exhaust designs
• Available with or without damper
• Compatible with quick couplings (including VL / click coupling)
• Can be mounted on balancers, channel ducts and hose reels
• Materials: soft rubber nozzles, oval/rubber funnels, reinforced and high-temperature hoses (HT up to 300°C)
• Typical applications: garages, workshops, engine test stands, construction equipment, agricultural machinery, trucks and specialist vehicles

Representative product table (Art. no — Designation — Hose / nozzle diameter)
06-255 — Double exhaust trolley, incl damper — ø125 mm
07-035 — Type AU2 — ø150 mm (height adjustable holder; suited for test stands)
07-040 — Type AU2 — ø200 mm (height adjustable holder)
06-250 — FBE hose cart — ø100 mm (height adjustable, easy to place)
06-251 — FBE hose cart — ø125 mm (height adjustable, easy to place)
06-252 — FBE hose cart — ø150 mm (height adjustable, easy to place)
06-386 — Y-coupling 125/100/45° complete — (for dual exhaust pipes)
06-387 — Y-coupling 125/100/45° complete with quick coupling VL — (dual exhaust set)
06-388 — Y-coupling HT-300°C 125/100/45° — (high-temperature variant)
06-389 — Y-coupling 100/100/45° complete (incl hoses) — (dual exhaust set)
06-390 — Y-coupling 100/100/45° complete with click coupling VL (incl hoses) — (dual exhaust set)
06-200 — Extended nozzle ø125/250 — H = 2 m (well suited for construction equipment with vertical exhaust pipes)
06-200A — Extended nozzle ø125/200 — H = 2 m with 300°C hose (for vertical exhausts)
06-202 — Extended nozzle ø150/362 — H = 2 m (suitable for agricultural machinery and trucks; with 300°C hose)
06-168 — Type S (rubber / funnel-shaped nozzle) — various diameters (e.g. S-65/90 ø90 mm; light weight variants)
06-168A — Type S (variant) — ø90 mm, weight examples: 0.65 kg (smaller variants shown)
06-163 / 06-163A / 06-164 / 06-164A / 06-165 / 06-165A — Type SA / Type SE variants — oval / spring-loaded flap / heavy duty / truck sizes (multiple diameters and configurations; adapted for trucks and larger vehicles)
06-140 / 06-139 / 06-142 / 06-141 etc. — GeoFlexGrip and GeoFlexGrip sizes (examples: GeoFlexGrip 140/25, 180/30, 240/15 etc.) — typical diameters shown 75–150 mm; weights and damper options vary

Notes about mounting & options
Nozzles can be supplied with integrated damper or without damper. Many designs include built-in clamp or spring-flap functions. Several models are available with quick couplings (VL, click coupling) and in high-temperature hose versions rated up to approx. 300°C.

Technical specifications

• Brand: Geovent
• Application: Exhaust fume extraction in garages, workshops, engine test stands, construction vehicles, agricultural machinery and trucks
• Nozzle types: funnel-shaped (AU2, S), oval rubber (PO, SE), spring-flap (SK), GeoFlex / GeoFlexGrip, Y-couplings, extended nozzles, hose carts and trolleys
• Mounting options: balancers, channel ducts, hose reels, quick couplings
• Damper options: with or without damper; tight-damper and automatic variants available
• Quick coupling options: VL quick coupling, click coupling VL and other standard quick couplings
• Hose / nozzle diameters: typical range ø70 mm up to ø250 mm (examples: ø70, ø80, ø90, ø100, ø115, ø125, ø140, ø150, ø180, ø200, ø230, ø250)
• High-temperature variants: HT / HT-300°C hoses for specific nozzle types
• Materials: soft rubber, reinforced GeoFlex hoses, high-temp hose constructions
• Example weights (indicative): SK-80 ~1.30 kg; SK-100 ~2.05 kg; SK-125 ~3.05 kg; SK-150 ~3.10 kg
• Typical product codes / article numbers listed: e.g. 06-255, 07-035, 06-250, 06-386, 06-200, 06-168, 06-140, 06-163, 06-139, 06-142, 06-328
