Plunger pump PP-60-E
waterslurryfor cement

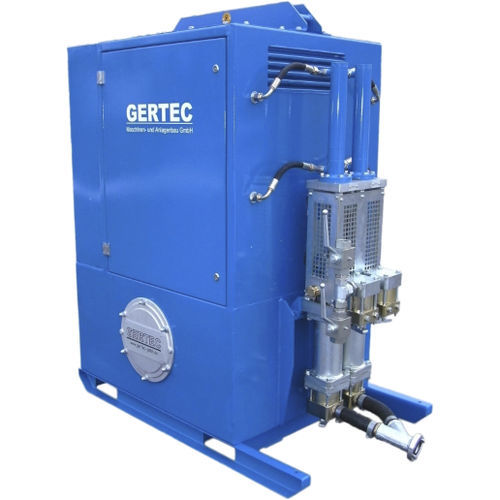

Plunger pump - PP-60-E - GERTEC - water / slurry / for cement
Plunger pump - PP-60-E - GERTEC - water / slurry / for cement
Add to favorites
Compare this product

Characteristics

Technology
plunger
Fluid
water, slurry, for cement
Operation
electric
Priming
self-priming
Mobility
stationary
Domain
industrial, for the construction industry
Applications
discharge, filling, injection, suction
Material
steel
Fluid specification
for viscous fluids
Voltage
400 V
Protection level
standard
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 50 l/min
(13.2086 us gal/min)

Pressure

100 bar
(1,450.377 psi)

Power

11 kW
(14.96 hp)

Length

135 cm
(53 in)

Width

0.8 m
(2'07" )

Height

1.7 m
(5'06" )

Weight

800 kg
(1,763.7 lb)

Description

Technical Data / Performance Data • Solids grain size max. 2 mm • Pressure connection 3/4“ IG • Suction connection Storz D 1“ standard coupling DIN14307, alternatively 1“IG • Power connection CEE-plug 32A, 5-pole with phase inverter • Voltage 400 V; 50 Hz Application areas: • Sealing, gap and conduct grouting • Anchor injection, ground stabilization, rock injection • Drill injection • Jet grouting, pipe roof grouting • Cavity filling Micro tunnelling Discharge and grouting of : • Cement, bentonite and tone slurries, water glass or other gels • Cement slurries, anchor grout • Bentonite and tone slurries • Cement slurries • Cement and fly ash slurries • Bentonite, cement and insulation slurries
