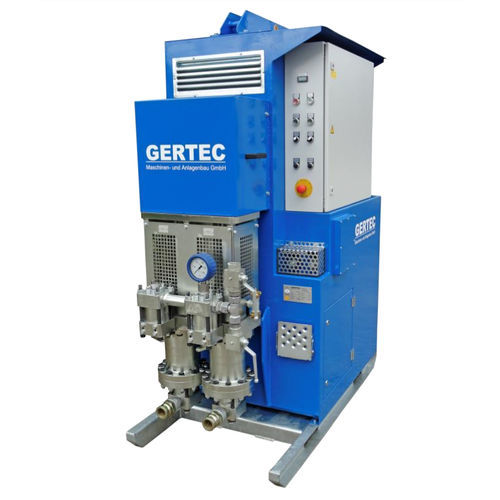

Plunger pump PP-100-Ewaterstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water
- Mobility
- stationary
- Domain
- industrial
- Applications
- discharge, injection, suction
- Voltage
- 400 V
- Protection level
- standard
- Other characteristics
- flow
- Flow
Max.: 200 l/min
(52.83441 us gal/min)Min.: 0 l/min
(0 us gal/min)- Pressure
100 bar
(1,450.377 psi)- Power
20 kW
(27.19 hp)- Length
165 cm
(64.961 in)- Width
1 m
(3'03" )- Height
1.9 m
(6'02" )- Weight
1,300 kg
(2,866.01 lb)
Description
Technical Data / Performance Data
• Solids grain size max. 2 mm
• Pressure connection 1 ¼“ IG
• Suction connection Storz 2“ standard coupling DIN14307, alternatively 2“ IG
• Power connection CEE-plug 63A, 5-pole with phase inverter
• Voltage 400 V; 50 Hz
Application areas:
• Sealing, gap and conduct grouting
• Anchor injection, ground stabilization, rock injection
• Drill injection
• Jet grouting, pipe roof grouting
• Cavity filling
• Micro tunnelling
