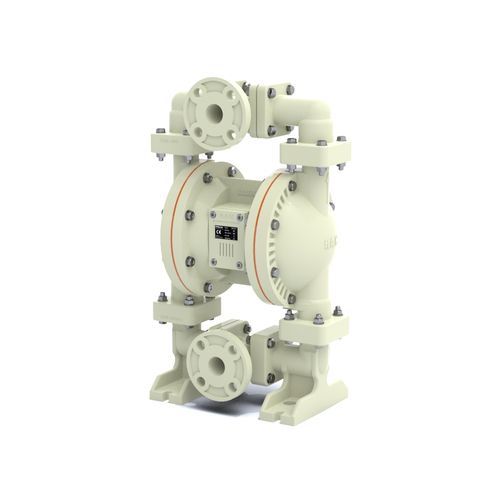

Double-diaphragm pump D25-P1-2
wateracidfor solvents

Double-diaphragm pump - D25-P1-2 - Gisan Ltd. - water / acid / for solvents
Double-diaphragm pump - D25-P1-2 - Gisan Ltd. - water / acid / for solvents
Double-diaphragm pump - D25-P1-2 - Gisan Ltd. - water / acid / for solvents - image - 2
Add to favorites
Compare this product

Characteristics

Technology
double-diaphragm
Fluid
water, acid, for solvents, for ink, fuel, for liquified gas
Operation
pneumatic
Priming
self-priming
Mobility
stationary
Domain
industrial, chemical, for the food and beverage industry, for marine applications
Applications
transfer
Material
stainless steel, aluminum, PTFE, plastic, PP
Fluid specification
for aggressive media
Protection level
chemical-resistant
Flow

170 l/min, 208 l/min
(44.90925 us gal/min, 54.94779 us gal/min)

Pressure

8 bar
(116.03 psi)

Head

Max.: 70 m
(229'07" )

Min.: 0 m
(0'00" )

Fluid temperature

80 °C
(176 °F)

Length

507 mm
(20 in)

Width

210 mm
(8.27 in)

Height

378 mm
(14.88 in)

Weight

9.1 kg, 9.5 kg
(20.06 lb, 20.94 lb)

Description

1'' (25.4 mm) Polypropylene Body Dıaphragm Pump Fluid Inlet-Outlet : 1'' ANSI Flange Housing Material : Polypropylene Center Section Material : Polypropylene Diaphragm Material : PTFE Valve Ball Material : PTFE Valve Seat Material : PTFE Fluid Inlet-Outlet : 1'' ANSI Flange Housing Material : Polypropylene Center Section Material : Polypropylene Diaphragm Material : TPE Valve Ball Material : TPE Valve Seat Material : TPE
