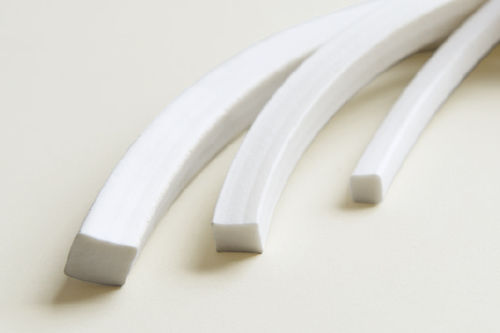

SQUARE SILICONE FOAM PROFILE
REFERENCE:
FSP
DESCRIPTION:
Square silicone Foam Profile 250Cº
MATERIAL:
High temperature Foam Silicone 250ºC
See the material data sheet
DIMENSIONAL TOLERANCE
The dimensional tolerance of Square silicone Foam Profile is according the RMA A3 for the Rubber Foam
APLICATIONS:
Powder Coating, Wet Coating, E-Coating, Plating, Anodizing.
USES:
The Square silicone Foam Profile is used to mask grooves.
The Square silicone Foam Profile is served in rolls of 25m and must be cut according to the length
required for application. It is mainly used to mask the grooves during the surface treatments. But it has
many other applications thanks to the heat resistance and high level of flexibility.
RECOMMENDATIONS of USE:
To choose the appropriate size is necessary taking into consideration the Square silicone Foam Profile “A”
and “B”. The Square silicone Foam Profile is very flexible, so when deciding the appropriate cord size you
can take an “A” and “B” quite bigger than the groove (0.5mm to 2mm). When we fit it by pressing it into
the groove, the Square silicone Foam Profile will reduce the dimension significantly and the fitting will be
easy, quick and tight inside groove. Once fitted, the Square silicone Foam Profile has to be well fitted and
held all along the inside groove.
If the Square silicone Foam Profile has to be cut into a smaller length, then it is recommended to use a
special profile cutter to do it accurately, quickly and safety.
STORAGE RECOMMENDATIONS:
Storing this product away from direct sunlight and at a temperature between 20º C and 25º C
