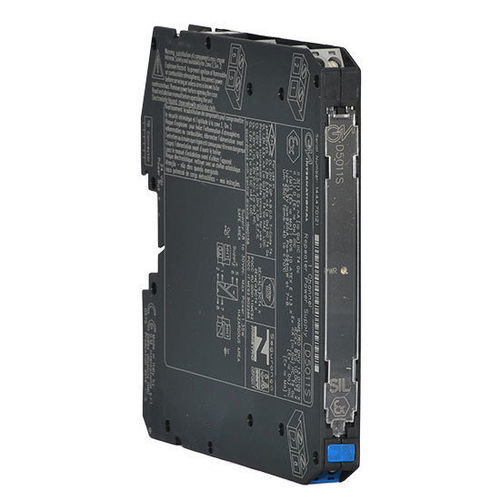

Communication repeater D5011S

interfacecurrentATEX

I.S. SIL3 2-Wire HART® Transmitter Power SupplyThe Repeater Power Supply D5011 module is a high integrity analog input interface suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA transmitters located in Hazardous Area, and repeats the current in floating circuit to drive a Safe Area load. The circuit allows bi-directional communication signals, for HART® devices.SIL 3 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 24-20 mA Passive Input, Source OutputHART® compatibleInput and Output short circuit proofHigh AccuracyThree port isolation, Input/Output/SupplySupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption45 mA @ 24 Vdc with 20 mA out, typical.Power Dissipation0.675 W @ 24 Vdc with 20 mA out, typical.InputType4 to 20 mA (2 wires Tx current limited ≈ 25 mA), reading range 0 to 24 mA.Transmitter line voltage15.0 V typical, 14.5 V minimum, @ 20 mA.OutputType4 to 20 mA, on max. 550 Ω load in source mode (typical 12 V compliance).Response time5 ms (0 to 100 % step change).PerformanceRef. Conditions24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.Calibration accuracy≤ ± 0.1 % FSR.Linearity accuracy≤ ± 0.05 % FSR.Temp. influence≤ ± 0.01 % FSR on zero/span for a 1 °C change.IsolationTest VoltageI.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.Safety descriptionEquipmentAssociated apparatus and non-sparking electrical equipment.Safety parametersUo = 25.9 V, Io = 92 mA, Po = 594 mW at terminals 7-8, 9-10. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weightabout 125 gConnectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Status: ACTIVEChannels: 1Product lifecycle policy: ENCertifications: ATEX, EMC, Ex (China, India, Japan, Eurasian Community, UAE, North America, Brazil), IECEx, Maritime (KR, DNV-GL, NK), Metrological (Belarus, Kazakhstan, Russia), SIL (TUV SUD)Declarations of Conformity: EU, G3 compliance, IECExData Sheet, Instruction Manual, Safety Manual, Control Drawings available in multiple languages (EN, RU, DE, FR, ES, IT, CN, JA, PT)Drawings: 2D and 3D availableRelated products: D5011DAccessories: JDFT049, OPT5096Series: D5000Category: Intrinsically Safe Isolators > Analog InputBrand: G.M. International S.p.A.Commercial name: D5011SWebsite: Product PageTechnical support, documentation, and certifications available on request.For more details, refer to the official documentation and datasheets.Specifications summary:Supply voltage: 24 Vdc nom (18 to 30 Vdc)Current consumption: 45 mA @ 24 Vdc with 20 mA outPower dissipation: 0.675 W @ 24 Vdc with 20 mA outInput: 4 to 20 mA (2 wires Tx), reading range 0 to 24 mAOutput: 4 to 20 mA, max. 550 Ω loadResponse time: 5 msCalibration accuracy: ≤ ± 0.1 % FSRLinearity accuracy: ≤ ± 0.05 % FSROperating temperature: –40 to +70 °CDimensions: 12.5 x 123 x 120 mmWeight: about 125 g
