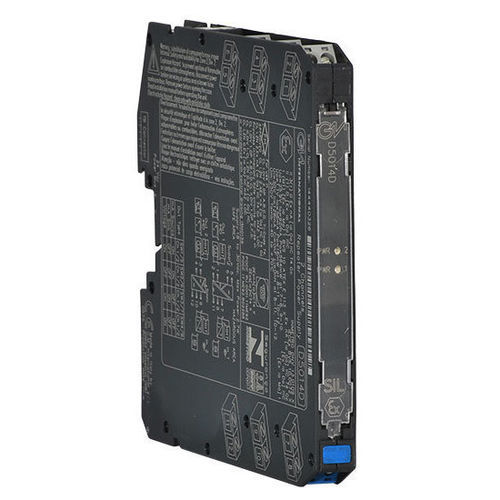

Communication repeater D5014D

interfacecurrentATEX

I.S. SIL3 2/4-Wire HART® Transmitter Power SupplyThe Repeater Power Supply D5014 module is a high integrity analog input interface suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA, active or passive, transmitters located in Hazardous Area, and repeats the current in floating circuit to drive a Safe Area load. The module supports output current duplication and it allows bi-directional communication signals, for HART® devices.SIL 3 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 22 fully independent channels4-20 mA Active-Passive Input, Source-Sink OutputOutput current duplication availableHART® compatibleInput and Output short circuit proofIn-field programmability by DIP SwitchHigh AccuracyThree port isolation, Input/Output/SupplyHigh Density, two channels per unitStatus: ACTIVETechnical DataSupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption90 mA @ 24 Vdc with 20 mA out, typical.Power Dissipation1.35 W @ 24 Vdc with 20 mA out, typical.InputType4 to 20 mA (separately powered input, voltage drop ≤ 0.5 V) or 4 to 20 mA (2 wires Tx current limited ≈ 25 mA), reading range 0 to 24 mA.Transmitter line voltage15.0 V typical, 14.5 V minimum, @ 20 mA.OutputType4 to 20 mA, on max. 550 Ω load in source mode (typical 12 V compliance); V min. 8 V @ 0 Ω load V max. 30 V in sink mode, current limited ≈ 25 mA or 1 to 5 V on internal 250 Ω shunt. Output current duplication available (D5014D).Response time5 ms (0 to 100 % step change).PerformanceRef. Conditions24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.Calibration accuracy≤ ± 0.1 % FSR.Linearity accuracy≤ ± 0.05 % FSR.Temp. influence≤ ± 0.01 % FSR on zero/span for a 1 °C change.IsolationTest VoltageI.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.Safety descriptionEquipmentAssociated apparatus and non-sparking electrical equipment.Safety parametersUo = 25.9 V, Io = 92 mA, Po = 594 mW at terminals 7-8, 9-10. Uo = 1.1 V, Io = 56 mA, Po = 16 mW at terminals 8-11, 10-12. Ui = 30 V, Ii = 128 mA, Ci = 0 nF, Li = 0 nH at terminals 8-11, 10-12. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weightabout 155 gConnectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Channels: 2Certifications: ATEX, IECEx, UL, FM, INMETRO, CCC, CCOE, EAC, Maritime, Metrological, SIL (see documentation for details)Product lifecycle policy: ACTIVERelated Series: D5000Characteristics / Technical Specifications:Repeater Power Supply for 2/4-wire HART® transmittersSIL 3 certified2 fully independent channelsInput: 4-20 mA, active/passiveOutput: 4-20 mA, source/sink, output current duplicationHigh accuracy and linearityThree port isolationDIN-Rail mountingOperating temperature: –40 to +70 °CDimensions: 12.5 x 123 x 120 mmWeight: about 155 gHART® compatibleShort circuit proofIn-field programmability by DIP Switch
