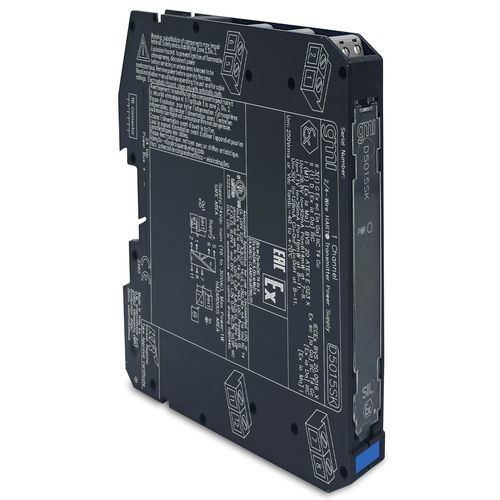

Communication repeater D5015SK

interfacecurrentATEX

The Repeater Power Supply D5015 module is a high integrity analog input interface suitable for applications requiring SIL 2 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA, active or passive, transmitters located in Hazardous Area, and repeats the current in floating circuit to drive a Safe Area load. The circuit allows bi-directional communication signals, for HART® devices.SIL 2 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 24-20 mA Active-Passive Input, Source-Sink OutputHART® compatibleInput and Output short circuit proofHigh AccuracyThree port isolation, Input/Output/SupplySupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption40 mA @ 24 Vdc with 20 mA out, typical.Power Dissipation1.0 W @ 24 Vdc with 20 mA out, typical.InputType4 to 20 mA (2 wires Tx current limited ≈ 25 mA), reading range 0 to 24 mA.Transmitter line voltage16.5 V minimum @ 20 mA.OutputType4 to 20 mA, on max. 600 Ω load in source mode; V min. 2 V @ 0 Ω load V max. 30 V in sink mode (max. load resistance 600 Ω), current limited @ ≈ 25 mA.Response time5 ms.PerformanceRef. Conditions24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.Calibration accuracy≤ ± 20 μA.Linearity accuracy≤ ± 10 μA.Temp. influence≤ ± 2 μA/°C.IsolationTest VoltageI.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.Safety descriptionEquipmentAssociated apparatus and non-sparking electrical equipment.Safety parametersUo = 26.8 V, Io = 92 mA, Po = 614 mW at terminals 7-8. Uo = 1.1 V, Io = 56 mA, Po = 16 mW at terminals 8-11. Ui = 30 V, Ii = 128 mA, Ci = 0 nF, Li = 0 nH at terminals 8-11. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weightabout 130 g.Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Status: ACTIVEChannels: 1Product lifecycle policy: ENCertifications: ATEX, EMC, Ex, IECEx, Maritime, Metrological, SILDocumentation available: Datasheet, Instruction Manual, Safety Manual, Control Drawing, Declarations of ConformityCompatible with D5000 Series accessoriesTechnical Specifications:Voltage: 24 Vdc nom (18 to 30 Vdc)Current Consumption: 40 mA @ 24 Vdc with 20 mA outPower Dissipation: 1.0 W @ 24 Vdc with 20 mA outInput Type: 4 to 20 mA (2 wires Tx current limited ≈ 25 mA)Transmitter line voltage: 16.5 V minimum @ 20 mAOutput Type: 4 to 20 mA, max. 600 Ω load in source modeResponse time: 5 msCalibration accuracy: ≤ ± 20 μALinearity accuracy: ≤ ± 10 μATemp. influence: ≤ ± 2 μA/°CTest Voltage: I.S. In/Out 2.5 kV; I.S. In/Supply 2.5 kVOperating temperature: –40 to +70 °CStorage temperature: –45 to +80 °CMounting: DIN-Rail 35 mmWeight: about 130 gDimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm
