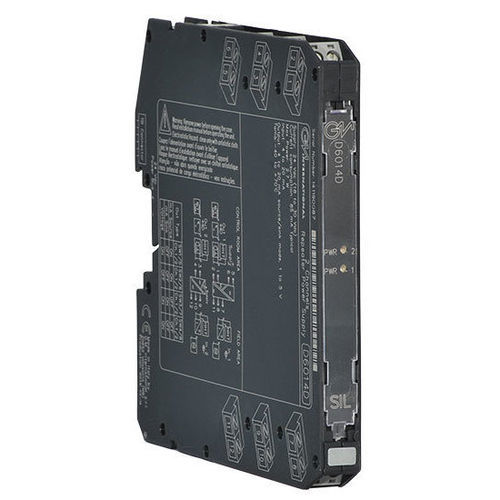

SIL 3 repeater D6014D

HART4-20 mA

SIL3 2/4-Wire HART® Transmitter Power SupplyThe Repeater Power Supply D6014 module is a high integrity analog input interface suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA, active or passive, transmitters, and repeats the current in floating circuit to drive a load. The module supports output current duplication and it allows bi-directional communication signals, for HART® devices.SIL 3 / SC 32 fully independent channels4-20 mA Active-Passive Input, Source-Sink OutputOutput current duplication availableHART® compatibleInput and Output short circuit proofIn-field programmability by DIP SwitchHigh AccuracyThree port isolation, Input/Output/SupplyHigh Density, two channels per unitSupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption90 mA @ 24 Vdc with 20 mA out, typical.Power Dissipation1.35 W @ 24 Vdc with 20 mA out, typical.InputType4 to 20 mA (separately powered input, voltage drop ≤ 0.5 V) or 4 to 20 mA (2 wires Tx current limited ≈ 25 mA), reading range 0 to 24 mA.Transmitter line voltage15.0 V typical, 14.5 V minimum, @ 20 mA.OutputType4 to 20 mA, on max. 550 Ω load in source mode (typical 12 V compliance); V min. 8 V @ 0 Ω load V max. 30 V in sink mode, current limited ≈ 25 mA or 1 to 5 V on internal 250 Ω shunt (or 2 to 10 V on internal 500 Ω shunt on request). Output current duplication available (D6014D).Response time5 ms (0 to 100 % step change).PerformanceRef. Conditions24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.Calibration accuracy≤ ± 0.1 % FSR.Linearity accuracy≤ ± 0.05 % FSR.Temp. influence≤ ± 0.01 % FSR on zero/span for a 1 °C change.IsolationTest VoltageIn/Out 2.5 kV; In/Supply 2.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weightabout 155 gConnectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Status: ACTIVEChannels: 2Technical Specifications:SIL 3 / SC 32 fully independent channels4-20 mA Active-Passive Input, Source-Sink OutputOutput current duplication availableHART® compatibleInput and Output short circuit proofIn-field programmability by DIP SwitchHigh AccuracyThree port isolation, Input/Output/SupplyHigh Density, two channels per unitSupply Voltage: 24 Vdc nom (18 to 30 Vdc)Current Consumption: 90 mA @ 24 Vdc with 20 mA outPower Dissipation: 1.35 W @ 24 Vdc with 20 mA outInput Type: 4 to 20 mA, reading range 0 to 24 mATransmitter line voltage: 15.0 V typical, 14.5 V minimum, @ 20 mAOutput Type: 4 to 20 mA, max. 550 Ω load in source mode, 1 to 5 V or 2 to 10 V on requestResponse time: 5 msCalibration accuracy: ≤ ± 0.1 % FSRLinearity accuracy: ≤ ± 0.05 % FSRTemp. influence: ≤ ± 0.01 % FSR per 1 °CIsolation: In/Out 2.5 kV; In/Supply 2.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 VOperating temperature: –40 to +70 °CStorage temperature: –45 to +80 °CMounting: DIN-Rail 35 mmWeight: about 155 gConnection: plug-in disconnect screw terminal blocks up to 2.5 mm² (13 AWG)Dimensions: 12.5 x 123 x 120 mm (W x D x H)
