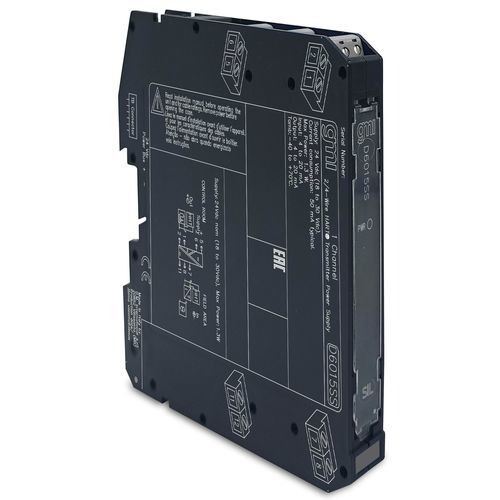

Communication repeater D6015SS

interfacecurrentDIN rail

SIL2 2/4-Wire HART® Transmitter Power SupplyThe Repeater Power Supply D6015 module is a high integrity analog input interface suitable for applications requiring SIL 2 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA, active or passive, transmitters, and repeats the current in floating circuit to drive a load. The circuit allows bi-directional communication signals, for HART® devices.SIL 2 / SC 34-20 mA Active-Passive Input, Source-Sink OutputHART® compatibleInput and Output short circuit proofHigh AccuracyThree port isolation, Input/Output/SupplyStatus: ACTIVEChannels: 1SupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption50 mA @ 24 Vdc with 20 mA out, typical.Power Dissipation0.8 W @ 24 Vdc with 20 mA out, typical.InputType4 to 20 mA (separately powered input, voltage drop ≤ 0.5 V) or 4 to 20 mA (2 wires Tx current limited ≈ 25 mA), reading range 0 to 24 mA.Transmitter line voltage16.5 V minimum @ 20 mA.OutputType4 to 20 mA, on max. 600 Ω load in source mode; V min. 2 V @ 0 Ω load V max. 30 V in sink mode (max. load resistance 600 Ω), current limited @ ≈ 25 mA.Response time5 ms.PerformanceRef. Conditions24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.Calibration accuracy≤ ± 20 μA.Linearity accuracy≤ ± 10 μA.Temp. influence≤ ± 2 μA/°C.IsolationTest VoltageIn/Out 2.5 kV; In/Supply 2.5 kV; Out/Supply 500 V.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weightabout 130 g.Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Certifications:EMC: D5000/D6000 EAC EMC Declaration of Conformity (Eurasian Community)Metrological Certificate Belarus for D5000/D6000 SeriesMetrological Certificate Kazakhstan for D5000/D6000 seriesMetrological Certificate Russia for D5000/D6000 seriesSIL: TUV IT 25 SIL 0634 SIL Certificate SummaryDeclarations of Conformity:EU Declaration of Conformity for D6000 seriesDeclaration of Conformity G3 complianceTechnical Specifications:Product type: Repeater Power Supply, Analog Input InterfaceApplication: SIL 2 safety related systems, high risk industriesInput: 4-20 mA, active/passive, HART® compatibleOutput: 4-20 mA, source/sink, max 600 Ω loadIsolation: 3-port (Input/Output/Supply)Mounting: DIN-Rail 35 mmDimensions: 12.5 x 123 x 120 mmWeight: ~130 gOperating temperature: –40 to +70 °C
