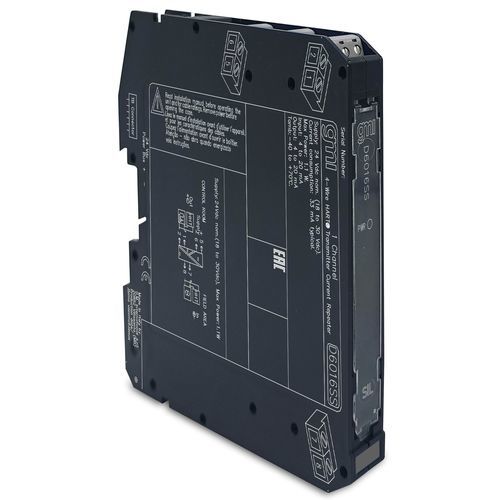

Industrial repeater D6016SS

currentDIN railcommunication

The Current Repeater D6016 module is a high integrity analog input interface suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It repeats a 2-wire active 4-20 mA current signal input in floating circuit to drive a Safe Area load. The module allows bi-directional communication signals, for HART® devices.SIL 3 / SC 32 fully independent channels4-20 mA Source-Sink OutputHART® compatibleHigh AccuracyThree port isolation, Input/Output/SupplyHigh Density, two channels per unitTechnical Specifications:Supply:Voltage: 24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption: 33 mA @ 24 Vdc with 20 mA out, typical.Power Dissipation: 0.90 W @ 24 Vdc with 20 mA output on 250 Ω load and 24 Vdc output supply for sink models, typical.Input:Type: 4 to 20 mA (separately powered input, voltage drop ≤ 7 V), reading range 0 to 22 mA.HART Impedance: 225 Ω, typical.Output:Type: 4 to 20 mA.Sink out voltage range: 2 to 30 V.Load range: 0 to 500 Ω, with conventional Tx input 250 Ω nom (160 to 500 Ω), with smart Tx input.Current limitation: 24 mA (up to 450 Ω load) ≤ max current ≤ 26 mA.Response time: 20 ms (10 to 90 % step change).Performance:Ref. Conditions: 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.Calibration accuracy: ≤ ± 20 μA.Linearity accuracy: ≤ ± 20 μA.Temp. influence: ≤ ± 2 μA/°C.Isolation:Test Voltage: In/Out 2.5 kV; In/Supply 2.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditions:Operating temperature: –40 to +70 °C.Storage temperature: –45 to +80 °C.Mounting:Type: DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weight: about 115 g.Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).Dimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm.Status: ACTIVEChannels: 1
