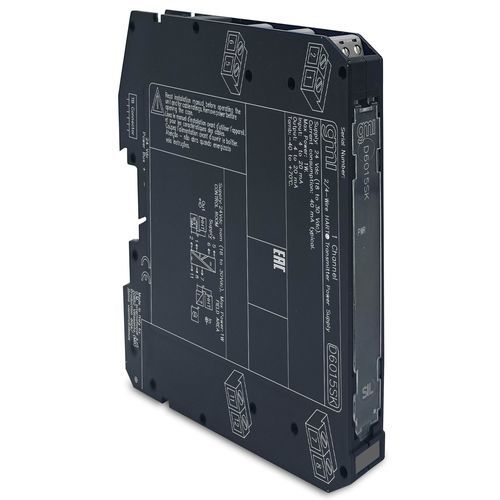

Analog signal conditioner D6015SK

4-20 mAwith DC power supplyDIN rail

SIL2 2/4-Wire HART® Transmitter Power SupplyThe Repeater Power Supply D6015 module is a high integrity analog input interface suitable for applications requiring SIL 2 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA, active or passive, transmitters, and repeats the current in floating circuit to drive a load. The circuit allows bi-directional communication signals, for HART® devices.SIL 2 / SC 34-20 mA Active-Passive Input, Source-Sink OutputHART® compatibleInput and Output short circuit proofHigh AccuracyThree port isolation, Input/Output/SupplyStatus: ACTIVEChannels: 1SupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption40 mA @ 24 Vdc with 20 mA out, typical.Power Dissipation1.0 W @ 24 Vdc with 20 mA out, typical.InputType4 to 20 mA (separately powered input, voltage drop ≤ 0.5 V) or 4 to 20 mA (2 wires Tx current limited ≈ 25 mA), reading range 0 to 24 mA.Transmitter line voltage16.5 V minimum @ 20 mA.OutputType4 to 20 mA, on max. 600 Ω load in source mode; V min. 2 V @ 0 Ω load V max. 30 V in sink mode (max. load resistance 600 Ω), current limited @ ≈ 25 mA.Response time5 ms.PerformanceRef. Conditions24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.Calibration accuracy≤ ± 20 μA.Linearity accuracy≤ ± 10 μA.Temp. influence≤ ± 2 μA/°C.IsolationTest VoltageIn/Out 2.5 kV; In/Supply 2.5 kV; Out/Supply 500 V.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weightabout 130 g.Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Certifications: EMC (EAC EMC Declaration of Conformity), Metrological Certificates (Belarus, Kazakhstan, Russia), SIL (TUV IT 25 SIL 0634)Declarations of Conformity: EU Declaration of Conformity for D6000 series, Declaration of Conformity G3 complianceTechnical Specifications:Supply voltage: 24 Vdc nom (18 to 30 Vdc)Current consumption: 40 mA @ 24 Vdc with 20 mA outPower dissipation: 1.0 W @ 24 Vdc with 20 mA outInput: 4 to 20 mA, voltage drop ≤ 0.5 V, reading range 0 to 24 mAOutput: 4 to 20 mA, max. 600 Ω load, current limited @ ≈ 25 mAResponse time: 5 msCalibration accuracy: ≤ ± 20 μALinearity accuracy: ≤ ± 10 μATemperature influence: ≤ ± 2 μA/°CIsolation: In/Out 2.5 kV; In/Supply 2.5 kV; Out/Supply 500 VOperating temperature: –40 to +70 °CStorage temperature: –45 to +80 °CMounting: DIN-Rail 35 mmWeight: about 130 gDimensions: 12.5 x 123 x 120 mm
