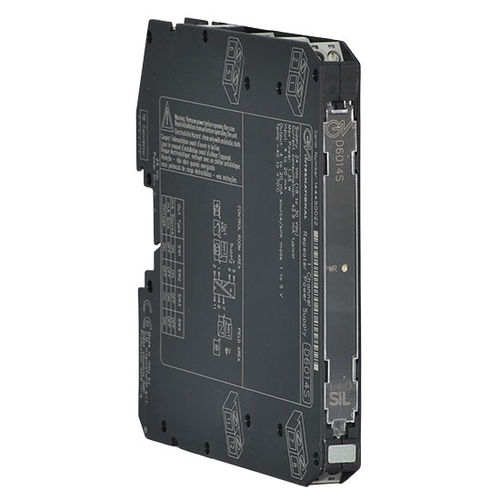

Communication repeater D6014S

interfacecurrent

The Repeater Power Supply D6014 module is a high integrity analog input interface suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA, active or passive, transmitters, and repeats the current in floating circuit to drive a load. The module supports output current duplication and it allows bi-directional communication signals, for HART® devices. FEATURES SIL 3 / SC 3 2 fully independent channels 4-20 mA Active-Passive Input, Source-Sink Output Output current duplication available HART® compatible Input and Output short circuit proof In-field programmability by DIP Switch High Accuracy Three port isolation, Input/Output/Supply High Density, two channels per unit
