Communication repeater D6016DK

interfacecurrentDIN rail

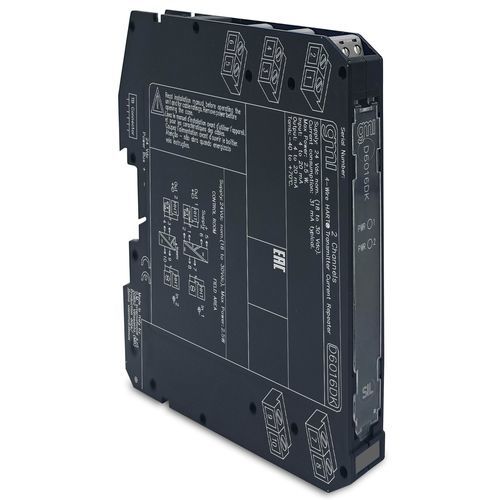

SIL3 2-Wire Active HART® Tx Current RepeaterThe Current Repeater D6016 module is a high integrity analog input interface suitable for applications requiring SIL 3 level in safety related systems for high risk industries. It repeats a 2-wire active 4-20 mA current signal input in floating circuit to drive a Safe Area load. The module allows bi-directional communication signals, for HART® devices.SIL 3 / SC 32 fully independent channels4-20 mA Source-Sink OutputHART® compatibleHigh AccuracyThree port isolation, Input/Output/SupplyHigh Density, two channels per unitStatus: ACTIVEChannels: 2SupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption31 mA @ 24 Vdc with 20 mA out, typical.Power Dissipation1.80 W @ 24 Vdc with 20 mA output on 250 Ω load and 24 Vdc output supply for sink models, typical.InputType4 to 20 mA (separately powered input, voltage drop ≤ 7 V), reading range 0 to 22 mA.HART Impedance225 Ω, typical.OutputType4 to 20 mA.Sink out voltage range2 to 30 V.Load range0 to 500 Ω, with conventional Tx input 250 Ω nom (160 to 500 Ω), with smart Tx input.Current limitation24 mA (up to 450 Ω load) ≤ max current ≤ 26 mA.Response time20 ms (10 to 90 % step change).PerformanceRef. Conditions24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.Calibration accuracy≤ ± 20 μA.Linearity accuracy≤ ± 20 μA.Temp. influence≤ ± 2 μA/°C.IsolationTest VoltageIn/Out 2.5 kV; In/Supply 2.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weightabout 135 gConnectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Product lifecycle policy: ENCertifications:SIL Certificate Summary: TUV IT 25 SIL 0609 A (EN)Declarations of Conformity:EU Declaration of Conformity for D6000 series (EN | IT)Declaration of Conformity G3 compliance (EN)Documentation:Datasheet of D6016 (EN | IT | FR | PT | DE | ES | CN | JA)Instruction Manual D6016 (EN)Safety Manual D6016 (EN)Technical Specifications:SIL 3 / SC 32 fully independent channels4-20 mA Source-Sink OutputHART® compatibleHigh AccuracyThree port isolation, Input/Output/SupplyHigh Density, two channels per unitVoltage: 24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption: 31 mA @ 24 Vdc with 20 mA out, typicalPower Dissipation: 1.80 W @ 24 Vdc with 20 mA output on 250 Ω load and 24 Vdc output supply for sink models, typicalInput Type: 4 to 20 mA (separately powered input, voltage drop ≤ 7 V), reading range 0 to 22 mAHART Impedance: 225 Ω, typicalOutput Type: 4 to 20 mASink out voltage range: 2 to 30 VLoad range: 0 to 500 Ω, with conventional Tx input 250 Ω nom (160 to 500 Ω), with smart Tx inputCurrent limitation: 24 mA (up to 450 Ω load) ≤ max current ≤ 26 mAResponse time: 20 ms (10 to 90 % step change)Calibration accuracy: ≤ ± 20 μALinearity accuracy: ≤ ± 20 μATemp. influence: ≤ ± 2 μA/°CTest Voltage: In/Out 2.5 kV; In/Supply 2.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 VOperating temperature: –40 to +70 °CStorage temperature: –45 to +80 °CMounting: DIN-Rail 35 mm, with or without Power Bus or on custom Term. BoardWeight: about 135 gConnection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG)Dimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm
