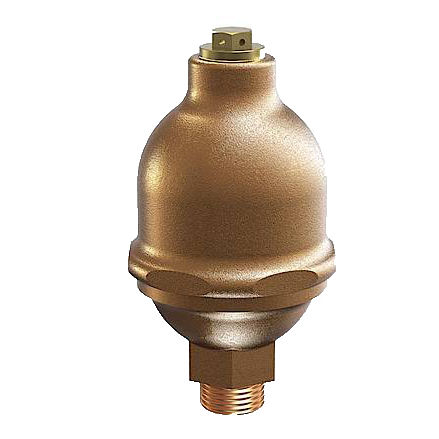

Floating ball valve 620 series

drainthreadedfor tanks

Venting of pressure tanks and -systems for filling and emptying and to purge liquid residues. - heating systems in industrial- and building-technology - venting of piping systems The float valve has to be installed vertically at the highest point of the plant and at places where air build-ups can occur. Decompression takes place, when the ball float is in the lowest position. In this position the air can freely escape through the valve. After decompression, the flowing water lifts the float and closes the valve so that no water can escape. Venting takes place when the water level has dropped and the float releases the valve. Valve version Type 620 Air inlet and outlet via lateral bore holes in the seat screw. Order example for type 620 with connection 3/8": 620-10 Type 620d Air inlet and outlet via seat screw with female threaded connection for size 1/4", 3/8" or 1/2". Order example for type 620d with connection 1/2" and seat screw with female connection 1/2": 620d-15 / 15
