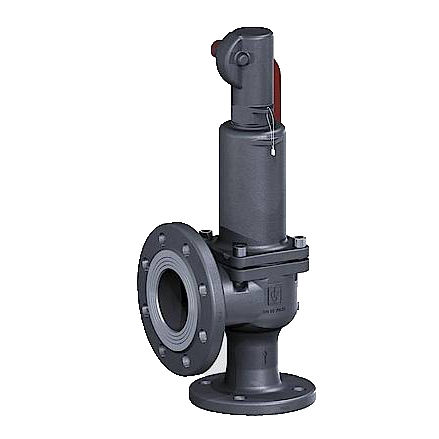

Steam safety valve 352bHL series

for hot waterflange

Proven technology comprising of various materials for the most varied requirements: This valve made of spheroidal graphite cast iron GGG40.3 is a cost-effective alternative to the corrosion-resistant versions made of gunmetal or stainless steel. These safety valves are not only used for the protection of large-scale heating plants in building technology but also for industrial applications and power stations. For the protection of: - thermostatically protected closed-circuit water heating systems with flow temperatures of up to 120°C for all static heights or rated output above 350 kW according to TRD 721, DIN 4751 and DIN EN 12828. Should the thermostatic limiting and control unit fail, the safety valve has to blow-off the total heating output of the boiler as hot water and steam. As these valves are completely made of metal, they can also be installed at high environmental or radiation temperatures. - heating systems for building technology and industrial applications - co-generation plants (CHP) - biogas plants - district heating transfer stations, building sub-stations Safety valves are set and sealed at the factory.
