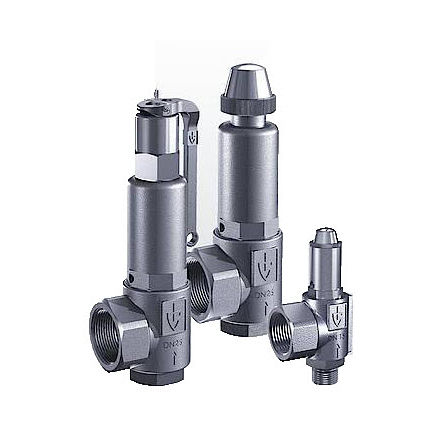

Hot water safety valve 451bHF seriesthreaded
Add to favorites
Compare this product
Characteristics
- Fluid
- for hot water
- Other characteristics
- threaded
- Controlled pressure
Max.: 25 bar
(362.6 psi)Min.: 0.5 bar
(7.3 psi)- DN
Max.: 2 in
Min.: 0.5 in
Description
Universal high performance safety valve made of extremely corrosion resistant stainless steel with stainless-steel-bellows, to meet the highest demands. Suitable and approved for heating plants and cooling- and chilling plants. The sizing of the valve is based on the heating output of the boiler. In the case of indirectly heated heating generators and closed chilling circuits this is based on the flow volume of the expansion water.
For the protection of:
- combined heating- and cooling systems
- cooling- and/or heating circuits as well as heat exchanger of co-generation plants (CHP)
- cooling systems and closed cooling circuits
as well as:
- thermostatically protected closed-circuit water heating systems with flow temperatures up to 120°C for all static heights or rated output above 350 kW.
- heating- and cooling plants in building- and industrial technology
- co-generation plants (CHP)
- cooling- and chilling technology
