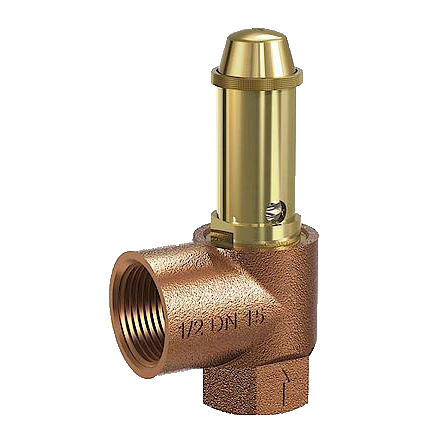

Hot water safety valve 651mWNK seriesfor tanksfor water systemsthreaded
Add to favorites
Compare this product
Characteristics
- Fluid
- for hot water
- Applications
- for tanks, for water systems
- Other characteristics
- threaded, diaphragm
- Controlled pressure
Max.: 10 bar
(145 psi)Min.: 3 bar
(43.5 psi)- DN
Max.: 1.25 in
Min.: 0.5 in
Description
651mWNK enlarged outlet (TÜV/CE)
Particularly in the case of valves which are employed in potable water installations, we do not accept any compromises regarding the materials used. Only the highest quality materials suitable and approved for potable water applications are used in these valves. These types of safety valves with diaphragm are installed in the cold water pipe before the hot water heater to protect it from inadmissible overpressure.
For the protection of:
- closed circuit water heaters for drinking water and process water according to TRD 721, DIN 4753 and DIN 1988 for temperatures up to max. 95°C.
The safety valve is installed in the cold water inlet of the hot water heater according to DIN 1988.
- water heaters for potable and process water and -storage tanks
Other Goetze KG products
Safety fittings for water supply in the building technology sector
