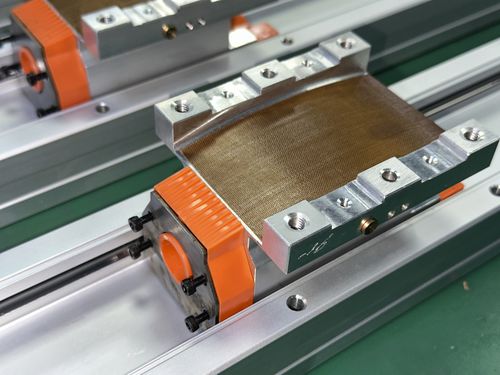

Ball screw linear module JTH6

aluminum profileguide

Additional information Width(mm) - 65 Maximum Payload(kg) - 30 Features high load capacity high rigidityHigh precision Application Scenarios transporting grippingWork positioning Suitable Industries solar energy equipment semiconductor equipmentTFT-LCD liquid crystal panel Repeatability(mm) - ±0.01 Ball screw(mm) - 5/10/20 MAximum speed(mm/s) - 250/500/1000 Maximum payload for Horizontal(kg) - 30/15/10 Maximum payload for Vertical(kg) - 10/5/2 Rated thrust(N) - 490/245/85 AC servo motor output(W) - 100 Ball screw(mm) - C7 12 High rigidity linear guide(mm) - W42xH9.5 Coupling(mm) - 7x8 Home sensor(outside) - EE-SX672(NPN) Material - Aluminum/Alloy steel Product name - Linear Motor Module Feature - High precision, high rigidity, high load capacity Application Scenarios - Work positioning, gripping, transporting Suitable Industries - TFT-LCD liquid crystal panel, semiconductor equipment, solar energy equipment Width(mm) - 65
