Ball screw linear module JTH10
aluminum profileguidesingle-axis

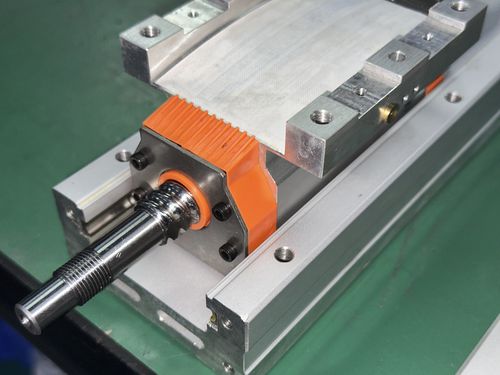

Ball screw linear module - JTH10 - Grand Growth - aluminum profile / guide / single-axis
Ball screw linear module - JTH10 - Grand Growth - aluminum profile / guide / single-axis
Ball screw linear module - JTH10 - Grand Growth - aluminum profile / guide / single-axis - image - 2
Ball screw linear module - JTH10 - Grand Growth - aluminum profile / guide / single-axis - image - 3
Ball screw linear module - JTH10 - Grand Growth - aluminum profile / guide / single-axis - image - 4
Add to favorites
Compare this product
Go to the Grand Growth website for more information

Characteristics

Type
ball screw
Features
aluminum profile, guide
Number of axes
XY, XYZ, single-axis
Other characteristics
compact, modular, for the medical sector, for the food industry, with cover, open frame, double support, for welding applications
Stroke

Max.: 1,200 mm
(47.244 in)

Min.: 50 mm
(1.969 in)

Linear speed

Max.: 1,200 mm/s

800 mm/s

Description

Additional information Width(mm) - 102 Maximum Payload(kg) - 60 Features high load capacity high rigidityHigh precision Application Scenarios transporting grippingWork positioning Suitable Industries solar energy equipment semiconductor equipmentTFT-LCD liquid crystal panel Repeatability(mm) - ±0.01 Ball screw(mm) - 5/10/20 MAximum speed(mm/s) - 250/500/1000 Maximum payload for Horizontal(kg) - 60/40/25 Maximum payload for Vertical(kg) - 18/14/5 Rated thrust(N) - 683/341/174 AC servo motor output(W) - 200 Ball screw(mm) - C7 16 High rigidity linear guide(mm) - W15xH15 Coupling(mm) - 10x8/11/14 Home sensor(outside) - EE-SX672(NPN) Home sensor(built-in) - EE-SX674(NPN) Material - Aluminum/Alloy steel Product name - Linear Motor Module Feature - High precision, high rigidity, high load capacity Application Scenarios - Work positioning, gripping, transporting Suitable Industries - TFT-LCD liquid crystal panel, semiconductor equipment, solar energy equipment Width(mm) - 102

VIDEO
