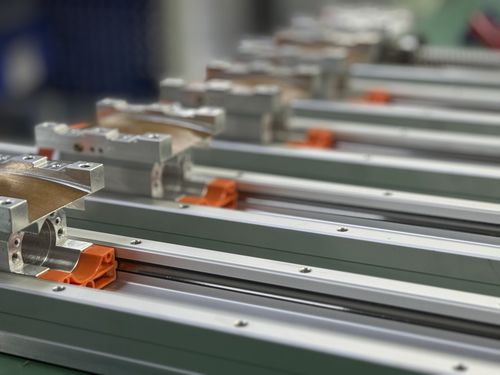

Ball screw linear module JTH13

aluminum profileguide

Additional information Width(mm) - 135 Maximum Payload(kg) - 70 Features high load capacity high rigidityHigh precision Application Scenarios transporting grippingWork positioning Suitable Industries solar energy equipment semiconductor equipmentTFT-LCD liquid crystal panel Repeatability(mm) - ±0.01 Ball screw(mm) - 5/10/20/32 MAximum speed(mm/s) - 250/500/1000/1600 Maximum payload for Horizontal(kg) - 70/47/24/13 Maximum payload for Vertical(kg) - 17/12/6/- Rated thrust(N) - 683/341/174/107 AC servo motor output(W) - 200 Ball screw(mm) - C7 16/20 High rigidity linear guide(mm) - W15xH12.5 Coupling(mm) - 10x11/14 Home sensor(outside) - EE-SX672(NPN) Home sensor(built-in) - EE-SX674(NPN) Material - Aluminum/Alloy steel Product name - Linear Motor Module Feature - High precision, high rigidity, high load capacity Application Scenarios - Work positioning, gripping, transporting Suitable Industries - TFT-LCD liquid crystal panel, semiconductor equipment, solar energy equipment Width(mm) - 135
