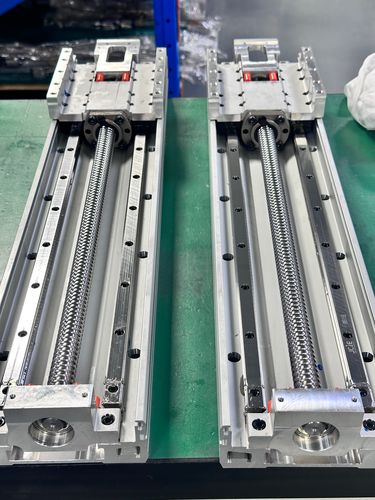

Ball screw linear module JTH10-2aluminum profileguidesingle-axis
Add to favorites
Compare this product
Characteristics
- Type
- ball screw
- Features
- aluminum profile, guide
- Number of axes
- XY, XYZ, single-axis
- Other characteristics
- compact, modular, for the medical sector, for the food industry, with cover, open frame, double support, for welding applications
- Stroke
Min.: 50 mm
(1.969 in)Max.: 1,400 mm
(55.118 in)- Linear speed
Max.: 1,200 mm/min
(0.8 in/s)
Description
Additional information
Width(mm) - 102
Maximum Payload(kg) - 60
Features
high load capacity high rigidityHigh precision
Application Scenarios
transporting grippingWork positioning
Suitable Industries
solar energy equipment semiconductor equipmentTFT-LCD liquid crystal panel
Repeatability(mm)
-
±0.01
Ball screw(mm)
-
5/10/20/32
MAximum speed(mm/s)
-
250/500/1000/1600
Maximum payload for Horizontal(kg)
-
50/30/18/5
Maximum payload for Vertical(kg)
-
12/8/3/-
Rated thrust(N)
-
341/170/85/53
Stroke pitch
-
50-1400mm/50mm pitich
AC servo motor output(W)
-
100
Ball screw(mm)
-
C7 16
High rigidity linear guide(mm)
-
W12xH7.5
Coupling(mm)
-
10x8
Home sensor(outside)
-
EE-SX672(NPN)
Home sensor(built-in)
-
EE-SX674(NPN)
Material
-
Aluminum/Alloy steel
Product name
-
Linear Motor Module
Feature
-
High precision, high rigidity, high load capacity
Application Scenarios
-
Work positioning, gripping, transporting
Suitable Industries
-
TFT-LCD liquid crystal panel, semiconductor equipment, solar energy equipment
Width(mm)
-
102
