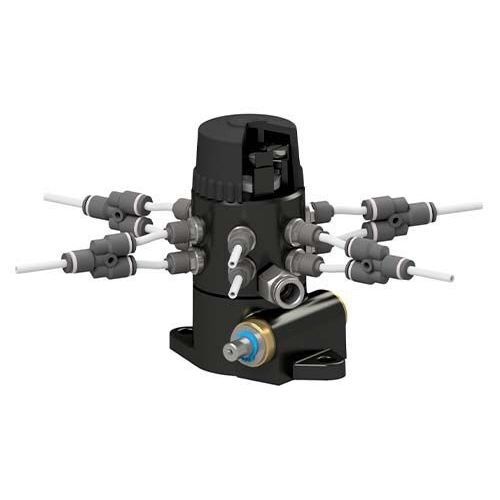

Oil lubrication system A

multi-linemechanicalelectric

Drive chains are subject to high wear and tear. They need intensive care to reduce breakdown and replacement costs. The BEKA A-Series multi-line system is the perfect solution for chain lubrication, improving the lifetime of drive chains. In comparison to conventional chain lubrication systems, with the A-Series pumps chains are lubricated whilst being in motion. This, in combination with a precise lubrication per lubrication point, is the benefit of this compact oil lubrication system. The BEKA A-Series pump is a compact pump with up to 6 individual outlets or 12 outlets if they are paired. Due to its compact design a little mounting space is needed. The pump is connected to an external oil reservoir and pumps the oil to the different lubrication points. The lubricant is applied onto the chains via brushes or felts, making sure the lubricant ends up on the chain and doesn’t drip off. The piston stroke, and with that the feed rate of the different lubrication points can be adjusted individually with easy to adjust set-screws. The device can also be equipped with a hand crank for prefilling long lubrication lines with lubricant before the pump starts. The A-Series pumps are available with a mechanical or electric drive and therefore suitable for many applications. It’s a robust pump with a long lifetime and low operating costs. Technical Data - Outlets - Up to 12 Delivery volume - Max. 0.6 or 0.15 cm3 stroke/outlet Lubricant - Oil, viscosity range 100 – 1500 cSt Operating temperature - 0 up to +40 °C (32 up to 104 °F) Operating pressure - max. 10 bar (145 psi), depending on model Power supply - 12 VDC; 24 VDC; 200/240 VDC or 346/420 VDC Protection class - IP 55
