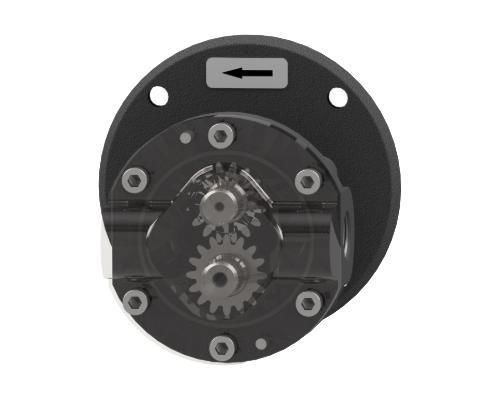

Hydraulic gear pump FL-MZ

external-gearinternal-gearelectric

Overview
The BEKA FL-MZ Series comprises gear pumps designed to supply oil and oil-like lubricants with adequate lubricity. The range includes FL (flange), U (foot) and MZ (motor) variants for industrial lubrication and transfer applications.

Design & Compliance
ATEX certified for use in hazardous environments. Compact, rugged construction to reduce installation footprint and ease maintenance. MZ motor pumps available in horizontal and vertical arrangements; horizontal MZ units can be mounted on a reservoir or machine and can suction up to 1 m from an oil sump.

Series variants

• FL: Flange-mounted pumps for direct drive via coupling (e.g. machine tools, compressors, high-pressure pumps). Available for clockwise or counterclockwise rotation; optional constant delivery direction.
• U: Foot-mounted pumps; functionally comparable to flange pumps but with different mounting.
• MZ: Motor pumps in horizontal or vertical construction; horizontal versions suitable for direct reservoir or machine mounting, suction height up to 1 m.

Gear types
Available as external and internal gear pumps. Internal gear pumps support higher operating pressures (up to 100 bar) and exhibit lower acoustic emission; external gear pumps provide a wide flow range with already low noise levels.

Technical Data
Function principle | External gear pump | Internal gear pump
Outlets | 1 | 1
Delivery volume FL pumps | 0.06–65 l/min | 4–32 l/min
Delivery volume U pumps | 1–65 l/min | 4–32 l/min
Delivery volume MZ pumps | 0.06–65 l/min | 4–32 l/min
Lubricant | Oil | Oil
Operation temperature | -20 to +80 °C (-4 to 176 °F) | -5 to +0 °C (23 to 158 °F)
Operating pressure | Max. 30 / 35 / 40 bar (435 / 507 / 580 psi) | Max. 100 bar (1450 psi)
Supply voltage | 230 / 400 V DC
Protection class | IP55

Characteristics / technical specifications

• Series name: BEKA FL-MZ (FL, U and MZ variants)
• Gear options: External and internal
• Outlets: 1
• Delivery ranges: FL & MZ 0.06–65 l/min (external); U 1–65 l/min (external); internal 4–32 l/min
• Compatible lubricants: Oil and oil-like lubricants with sufficient lubrication characteristics
• Operating temperature and pressure ranges as listed above
• Supply voltage: 230 / 400 V DC; Protection class: IP55
• ATEX certified for hazardous environments
• Compact design; flange (FL), foot (U) or motor (MZ) mounting; horizontal and vertical MZ options; horizontal MZ suction up to 1 m from sump
