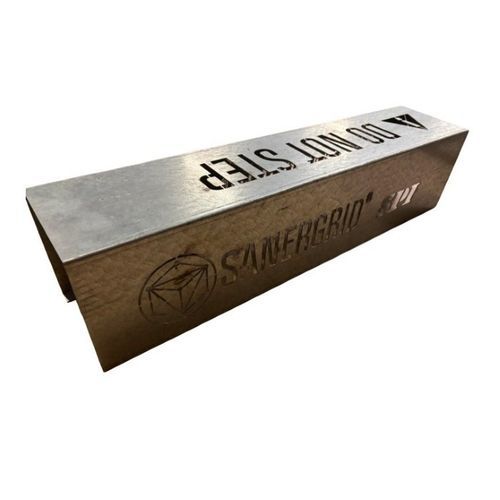

Cartridge filter housing BRAD® 400

for liquidssteelcustom-made

Overview
The BRAD® 400 is a mechanical protective cover designed to reduce the risk of accidental impacts on PETRO-PIT® SPI hydrocarbon filter cartridges and pre-filters. It provides a simple, universal mechanical protection that helps maintain filter sealing and hydraulic performance of the filtration system.

BRAD® 400 description
The cover protects SPI PETRO-PIT® filters and pre-filters from impacts that can occur during operations and maintenance around transformers, retention basins and drainage equipment. It can be fitted to new or existing retention basins, photovoltaic skids, BESS platforms and concrete pits.

Main benefits

• Reduces the risk of breakage of PVC threaded heads on filter cartridges and pre-filters.
• Maintains the sealing integrity of the filtration system.
• Preserves the hydraulic performance of the device.
• Improves safety during maintenance operations near basins, transformers and associated equipment.

Variants and range
The BRAD® range is available in several references adapted to different PETRO-PIT® or PETRO-PIPE® cartridges. A custom version (BRAD SP) can be manufactured on request.

Installation and maintenance

• Before installation, the basin must be equipped with a suitable PETRO-PIT® filtration kit.
• The edges of the cover should be slightly spread to allow insertion over the filtration kit.
• The BRAD® is positioned between the elbow and the pre-filter and is held in place on the kit.
• Low maintenance: periodic visual inspection is recommended.

Applications
Suitable for installations where operators frequently work near filtration equipment: transformer retention basins, photovoltaic skids, BESS platforms, concrete pits, and high-traffic areas for inspections and maintenance.

Characteristics / technical specifications

• Cover material: galvanized steel (Z275), suitable for outdoor installation.
• Manufacturing process: laser cutting and folding (no screws, no welding, no adhesive, no mechanical parts).
• Designed to withstand lateral, vertical and transverse stresses, accidental impacts and strong winds.
• Quick, universal installation without modification to the retention basin, concrete pit or photovoltaic skid.
• Designed not to alter the hydraulic operation of the filtration system.
• Contributes to limiting direct UV exposure of filter cartridges in high-solar-index areas.
• Dimensions: 70.2 × 15.3 × 16.4 cm.
• Weight: 4 kg.
• Material: steel (galvanized Z275).
• Operating conditions: outdoor, indoor.
• Compatible filtration: dielectric oils, hydrocarbons.
