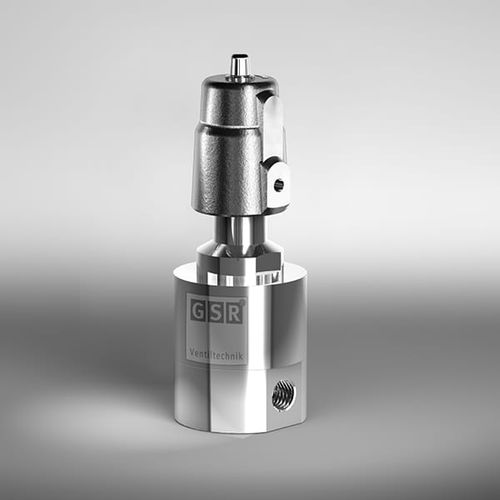

High-pressure valve 2/529 PNpistonpneumatically-operatedfor gas
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- pneumatically-operated
- Media
- for gas
- Body
- threaded
- Applications
- for liquids
- Material
- stainless steel
- Number of channels
- 2/2-way
- Other characteristics
- high-pressure, normally closed
- DN
Min.: 0.5 in
Max.: 2 in
- Pressure
Min.: 1 bar
(14.5 psi)Max.: 600 bar
(8,702.3 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 80 °C
(176 °F)- Flow rate
Min.: 4 m³/h
(141.26 ft³/h)Max.: 32 m³/h
(1,130.07 ft³/h)
Description
Description
2/2-Way pilot-pressure controlled valve, piston design
Impulse
with differential pressure
Body
Stainless Steel
