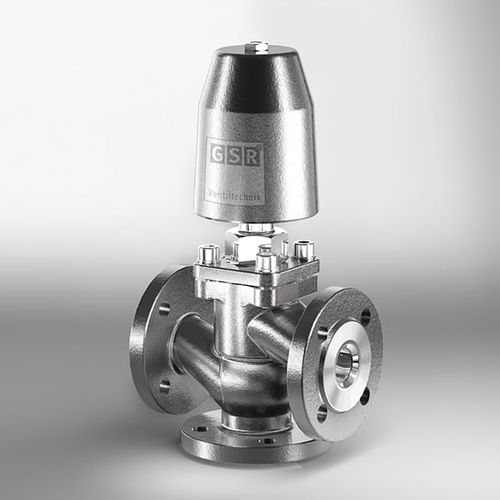

Plug valve 79pneumatically-operatedfor gasflange
Add to favorites
Compare this product
Characteristics
- Type
- plug
- Operation
- pneumatically-operated
- Media
- for gas
- Body
- flange
- Applications
- for liquids
- Material
- cast iron, cast steel
- Number of channels
- 3/2-way
- Other characteristics
- normally closed
- DN
Min.: 15 mm
(0.591 in)Max.: 150 mm
(5.906 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 16 bar
(232.1 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 200 °C
(392 °F)- Flow rate
Min.: 7 m³/h
(247.2 ft³/h)Max.: 62 m³/h
(2,189.51 ft³/h)
Description
Description
3/2-Way pressure controlled valve in poppet design
Impulse
without differential pressure
Body
Cast iron, Cast steel
Catalogs
Electronic position feedback
2 Pages
