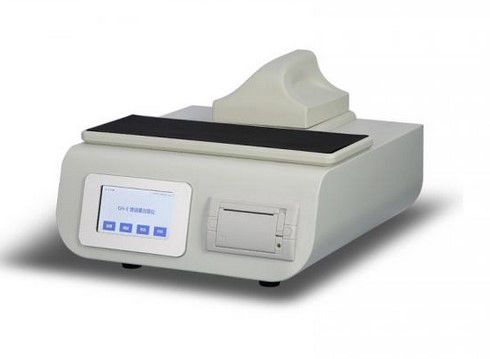

Thickness tester GH-E

for coating

Vacuum Coating Thickness Tester For Vacuum Aluminum Film Vacuum coating Thickness Tester is applied to various vacuum aluminum film, aluminized paper. and other conductive coating materials to test the résistance value, evenness. thickness and so on. Standards GB/T15717 Features Advanced circuit design assures the accuracy and stability of the test results. Adopt single-chip microcomputer to catch information, deal with data and control actions. With automatically report communication anomaly. Microcomputer controlling brings to fast processing speed, précisé control, reliable safety and intelligent operation. Color LED touch screen, friendly man-machine interface allows users to check the data and test results quickly and visually. High précision contact testing method, reaching a high test accuracy of ±0.001*1 Real time display of résistance value (maximum, minimum, average) and thickness (maximum, minimum, average). Configured with micro printer, which can quickly print out square résistance (maximum, minimum, average), thickness (maximum, minimum, average), and evenness. Based on actual demands, users can set number of test times to directly get the thickness resuit Spécifications Thickness test range: 50-1200A * Square résistance test range: 0.3-l(to Test précision: ±0.5%Fs Test sample size: 300mmXl00mm Fixture accuracy: ±0.1 mm Instrument size: 300mm*300mm* 150mm Power: 1000W Power supply: AC 220V. 50Hz
