- Peel force testing machine
- Guangzhou Biaoji Packaging Equipment Co., Ltd.

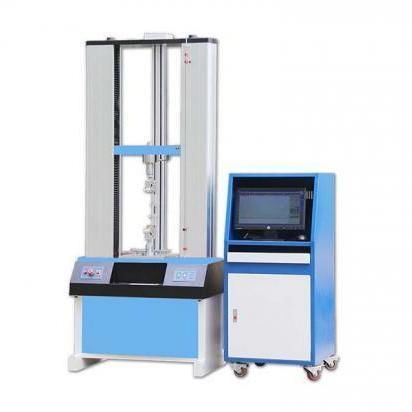

Flexure testing machine GBPI Universal Test Machinedisplacement forcetensilebending
Add to favorites
Compare this product
Characteristics
- Test type
- flexure, displacement force, tensile, bending, compression, other test types, peel force, shearing, peel
- Operating mode
- PC-controllable, computer-controlled, computerized, motorized
- Test material
- for wire, for medical packaging, for composite materials, for polymers, for plastic sheets, for paper, for plastics, for fiberglass-reinforced pipes, for metallic materials, for adhesive tape, for springs, for textiles, for wood, for films and thin products, for rubber, for pipes
- Sector
- for quality control, for laboratory, for research and development
- Technology
- servo-electric
- Configuration
- vertical
- Other characteristics
- double-column, high-stability
Description
Overview
This series is a universal testing system for mid-force mechanical tests including tensile elongation, compression, tear, large-size peel (90° and 180°) and related tests. Available capacities: 5 kN, 10 kN and 20 kN. Typical specimens: tires, belts, footwear, plastics, films, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composites, waterproof materials, fibers, textiles, wires and cables, paper, gold foil, ribbons, thread, springs, wood, pharmaceutical packaging, tapes, etc.
Materials
Main test types
Standards
Features
Technical specifications
This series is a universal testing system for mid-force mechanical tests including tensile elongation, compression, tear, large-size peel (90° and 180°) and related tests. Available capacities: 5 kN, 10 kN and 20 kN. Typical specimens: tires, belts, footwear, plastics, films, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composites, waterproof materials, fibers, textiles, wires and cables, paper, gold foil, ribbons, thread, springs, wood, pharmaceutical packaging, tapes, etc.
Materials
- Rubber
- PVC
- PE
- Polymer
- Plastic
- Metal
Main test types
- Tensile test — measures tensile strength and elongation
- 3-point bending test — evaluates compression and bending resistance
- Tear test
- Compression test
- Peel tests (90° and 180°)
- Puncture and puncturing resistance
- Peeling, heat sealing, puncture, bending, shear and related mechanical tests
Standards
- JJG 139
- ASTM D828
- ASTM E4
- ASTM D882
- ASTM D1938
- ASTM D3330
- ASTM F904
- JIS P8113
Features
- Flexible control modes: supports stretching, peeling, heat sealing, tearing, puncture, compression, bending, shear; adjustable speed, thickness and clamping distance
- Optional pneumatic fixtures and multiple clamp options
- High measurement accuracy (up to ±0.5% FS) with high sampling rate (e.g., 100 Hz)
- Imported core components and high-precision ball screw for stable loading and long-term stability
- Fully digital control with imported AC servo motor; expandable sensor interfaces
- Comprehensive safety protections: limit, overload protection and emergency stop
- Rigid dual-column frame; control unit configurable as built-in or external
- Intelligent software with audit trail, user levels, statistical analysis and customizable reports
- Independent operation mode (can run without PC) with optional built-in micro-printer and PC interface for online testing
- Laboratory IoT platform support for remote access, centralized data management, remote service and downloadable documents and videos
Technical specifications
- Measuring force range: 0–3000 N (sensor groups up to 20000 N available)
- Measuring force accuracy: within ±0.5% FS
- Test speed: 0–500 mm/min (stepless)
- Speed accuracy: within ±1% of indicated value
- Displacement accuracy: within ±0.5% of indicated value
- Effective test stroke: 1000 mm
- Elongation capacity: up to 1100%
- Effective test width: 30 mm
- Force resolution: 0.001 N
- Displacement resolution: 0.001 mm
- Dimensions (L×W×H): 750 mm × 500 mm × 1800 mm
- Weight: 150 kg
- Power: 600 W
- Power supply: AC 220 V, 50 Hz
