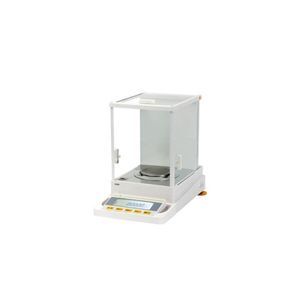

Analytical balance FA2004

gwith LCD displaybenchtop

Product Overview
This analytical balance FA2004 is designed for precision measurement and analysis in industrial and mining enterprises, research institutions, universities and laboratories. It is intended for routine and analytical weighing tasks requiring 0.0001 g readability.

Technical Parameters

• Readability (d): 0.0001 g
• Maximum capacity: 200 g
• Repeatability (standard deviation): ≤ 0.0001 g
• Linearity: ≤ 0.0002 g
• Calibration weight value: 200 g
• Calibration type: External automatic calibration
• Overall dimensions: 365 × 223 × 338 mm
• Packing size: 500 × 310 × 450 mm
• Pan size: Φ90 mm
• Effective volume of windshield: 150 × 165 × 200 mm
• Net weight: 5.5 kg
• Gross weight: 7.5 kg

Key Features

• Large backlit LCD display with high-sensitivity touch keys for simple operation.
• Built-in underhook for density determination and an overload-protected weighing pan.
• Airflow windshield below the pan to improve sealing and ensure reliable measurement results.
• Display protective cover to reduce dust and scratches and extend service life.
• Glass-door transport lock and four-sided transparent glass windshield with aluminum-alloy backplate.
• Omni-directional sensor protection against external forces from six directions.
• Full-aluminum base to suppress low-frequency vibration and stabilize the instrument body.
• Weighing pan with overload protection and pan-locking structure to prevent damage to the sensor.

Applications

• Industrial and mining laboratories
• Research institutions and universities
• Quality control and analytical testing in production
• R&D and process laboratories requiring sub-milligram accuracy
