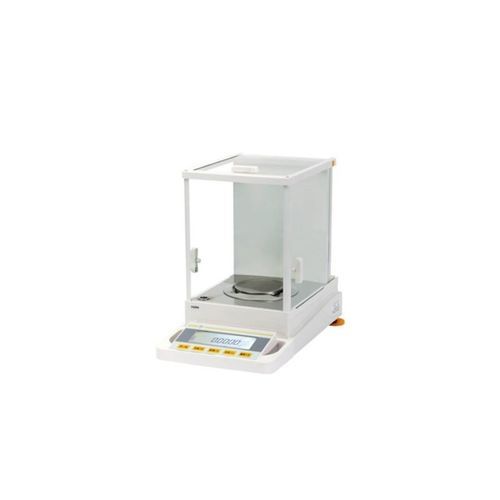

Electronic weighing machine FA1004

Product Introduction
This electronic analytical balance FA1004 is designed for precise weighing and quantitative analysis in laboratories, quality-control rooms of industrial and mining enterprises, research institutes and universities. It delivers high-resolution measurements for routine analytical tasks and method development.

Technical Specifications

• Readability (Actual division): 0.0001 g
• Maximum weighing range: 100 g
• Repeatability (standard deviation): ±0.0001 g
• Linearity: ≤ ±0.0002 g
• Calibration weight: 100 g
• Calibration type: External automatic calibration
• Overall dimensions: 365 × 223 × 338 mm
• Packing size: 500 × 310 × 450 mm
• Pan diameter: Ø90 mm
• Effective windshield volume: 150 × 165 × 200 mm
• Net weight: 5.5 kg
• Gross weight: 7.5 kg

Product Features

• Large backlit LCD and high-sensitivity touch keys for intuitive operation.
• Built-in under-pan weighing hook and overload-protected weighing pan.
• Airflow windshield under the pan for improved tightness and more stable results.
• Display protective cover for dust and scratch protection to extend service life.
• Glass door transport lock, four-sided transparent glass windshield and aluminum alloy back plate for clear visibility and durability.
• Omni-directional sensor protection to minimize damage from external forces in six directions.
• All-aluminum base to reduce low-frequency vibration and stabilize the balance body.
• Pan overload protection with pan locking structure to prevent sensor damage.
