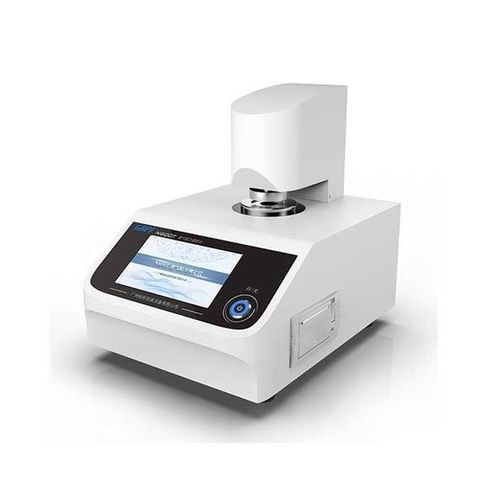

Gas permeability tester N600T

for oxygen transmission rateair permeabilityhardware

Introduction
N600T Air Permeation Resistance Tester is designed according to GB/T 44587-2024. Based on the differential pressure test principle, it is intended for measuring air permeation resistance of oxygen absorber packaging films used in food packaging and related materials.

Test Principle
With a test area of 6.42 cm2 and a controlled differential pressure (default 0.05 MPa), the instrument measures the time required for 100 mL of air to pass through the packaging film sample under test conditions.

Standards
GB/T 44587-2024 General Rule for Quality of Oxygen Absorber Packaging Films for Food

Technical Parameters

• Test Range: 6 ~ 12,000 s
• Resolution: 0.1 s
• Pressure Range: 0 ~ 100 kPa
• Pressure Resolution: 0.001 kPa
• Differential Pressure: 0.05 MPa (adjustable)
• Test Area: 6.42 cm2
• Sample Size: ≥50 mm × 50 mm
• Instrument Dimension: 450 mm × 400 mm × 300 mm
• Power: 100 W
• Power Supply: 110 ~ 250 VAC, 50 ~ 60 Hz

Product Features

• Adjustable differential pressure across 0 ~ 100 kPa with 0.001 kPa precision;
• Customizable measurement range to accommodate varied sample permeabilities;
• Fully automatic operation with automatic timing, measurement and result calculation;
• Built-in color touch screen for real-time monitoring; no external PC required;
• Integrated micro-printer for instant test report output.

Application

• Category: Food oxygen absorber testing
• Description: Designed for multi-layer composite packaging films (paper, plastics and other food-contact materials) used as oxygen absorber packaging, where controlled air permeability is required for dust-proofing, water-resistance and oil-resistance.

Technical Specifications

• Item No.: N600T (marked on product panel)
• Test Range: 6 ~ 12,000 s
• Resolution: 0.1 s
• Pressure Range: 0 ~ 100 kPa
• Pressure Resolution: 0.001 kPa
• Differential Pressure: 0.05 MPa (adjustable)
• Test Area: 6.42 cm2
• Sample Size: ≥50 mm × 50 mm
• Instrument Dimension: 450 mm × 400 mm × 300 mm
• Power: 100 W
• Power Supply: 110 ~ 250 VAC, 50 ~ 60 Hz
