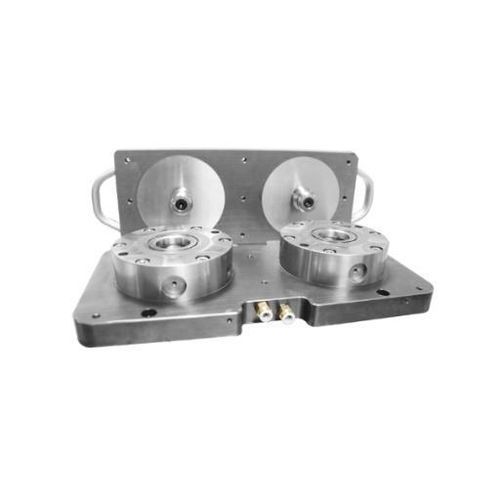

High-precision zero-point clamping unit DKPM01-4/65-A2/5

for machine tools

Overview
Zero-point automation fixtures maintain a consistent machining reference (zero point) when workpieces, machining processes or machine tools are changed. They are engineered to reduce repeated alignment and auxiliary setup time so machining centers can switch between operations with minimal downtime.

Product range / Example configuration

• Automated Zero-Point Clamping Fixture Series — example configurations: DKPM01-4/65-A2/5; DFZ03-69/120.

Key notes

• Clamping accuracy (both example models): ≤0.01 mm.
• Models differ by cylinder tension settings and maximum clamping force to match varying workholding loads.
• Designed for direct integration with machining centers and standard workholding systems.

Benefits

• Preserves a consistent zero point across part changes and process variations.
• Reduces repeated alignment and re-fixturing tasks.
• Shortens auxiliary setup time to improve machining-center productivity.

Technical specifications

• Clamping accuracy: ≤0.01 mm
• Example models: DKPM01-4/65-A2/5; DFZ03-69/120
• Configurable cylinder tension (varies by model)
• Multiple maximum clamping force options (varies by model)
• Application: automation fixtures for machining centers to maintain zero point and reduce setup/re-alignment time
• Integration: intended for integration with machining centers and workholding systems
