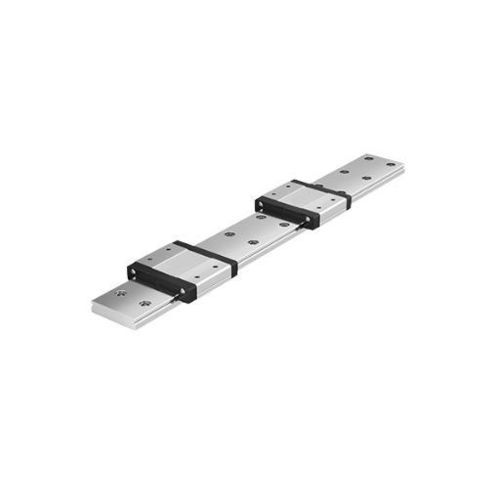

Compact linear guide HVW

miniaturewidelow-profile

Introduction
Compact equipment often requires a low installation profile while maintaining lateral stability. The HVW series combines a wider rail profile with a low center of gravity, multi-directional load capability and self-alignment to suit smaller precision mechanisms.

Features

• Wide rail profile for improved lateral stability
• Low center of gravity to reduce tipping moments and keep a low installation profile
• Multi-directional load support for loads from several directions
• Self-alignment to accommodate installation variation and simplify assembly
• Designed for compact precision mechanisms and equipment with space constraints

Applications

• Compact precision mechanisms and small axes in automation
• Equipment requiring a low installation profile with maintained lateral rigidity
• CNC, fine motion systems and compact positioning stages

Dimensions
Dimensional drawing and installation diagram are provided on the product page (diagram image available on the site).

Technical characteristics / specifications

• Series: HVW
• Brand: Haozhi
• Product type: Wide miniature linear guideways
• Key properties: wide rail form; low center of gravity; multi-directional load capability; self-alignment
• Typical use: compact precision mechanisms and compact equipment requiring lateral stability
• Technical data: numeric values (loads, sizes, materials, tolerances, part numbers) are provided in the technical data section on the product page
