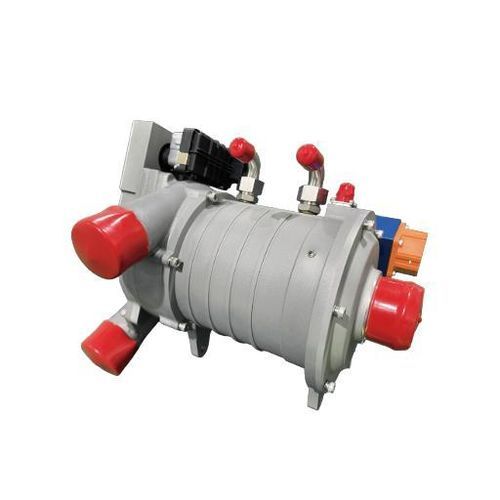

Centrifugal compressor DK-GF300A-T

airDCstationary

Overview
The DK-GF300A-T integrates two-stage compression with a VNT turbine energy-recovery system for air supply to fuel cell systems. It operates over 20–340 g/s, achieves a maximum pressure ratio of 4.0 and is specified to enable up to 30% energy-efficiency improvement in 150–200 kW fuel cell systems. Designed for system integration with IP67 protection and air suspension bearings.

Technical Data
Spindle Model: DK-GF300A-T
Structural form: Two stage compression + Energy recovery + VNT
Flow range (g/s): 20-340
Speed range (rpm): 30000-90000
Voltage (VDC): 450-750
Air compressor weight (kg): 18.1
Temperature of the intake air (°C): -30 ~ 45
Type of Bearing: Air suspension bearing
Maximum compression ratio: 4.0
Max. motor power (kW): 40
Maximum energy efficiency improvement: 30%
Start-stop life (cycles): 300,000
Controller weight (kg): 6.1
Protection level: IP67

DIMENSIONS
Refer to the product dimension drawing provided on the product page.

Features / Technical specifications

• Spindle Model: DK-GF300A-T
• Structural form: Two-stage compression with VNT turbine energy recovery
• Flow range: 20–340 g/s
• Speed range: 30,000–90,000 rpm
• Operating voltage: 450–750 VDC
• Air compressor weight: 18.1 kg
• Intake air temperature range: -30 to 45 °C
• Bearing type: Air suspension bearing
• Maximum compression ratio: 4.0
• Max motor power: 40 kW
• Maximum energy efficiency improvement: up to 30%
• Start-stop durability: 300,000 cycles
• Controller weight: 6.1 kg
• Ingress protection: IP67
