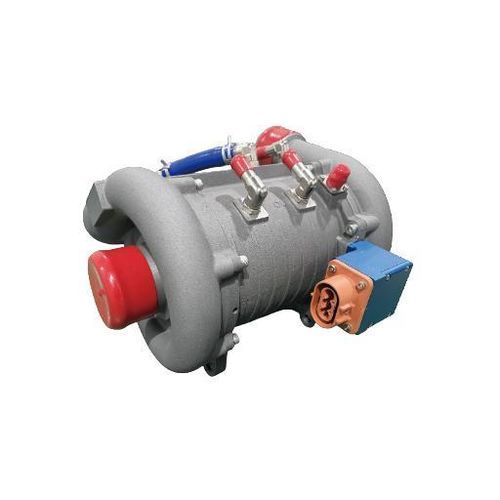

Centrifugal compressor DK-GF180B

airDCstationary

Overview
The DK-GF180B is a two-stage fuel cell air compressor designed without an energy-recovery turbine. It delivers an oil-free airflow of 13–245 g/s, driven by a 30 kW motor, with a maximum pressure ratio of 3.5 and IP67 protection for integration into industrial fuel cell systems requiring precise airflow control.

Key features

• Two-stage supercharging architecture for wide operating range
• Oil-free operation using air suspension bearings
• Flow control range: 13–245 g/s
• Speed range: 30,000–95,000 rpm
• Voltage: 450–750 VDC; motor up to 30 kW
• Maximum pressure ratio: 3.5
• Protection level: IP67 for harsh environments
• Start–stop endurance: 300,000 cycles

Applications
Integration in stationary and mobile fuel cell systems that require oil-free air supply, wide flow modulation and environmental protection (IP67). Suitable for manufacturers and system integrators working on fuel cell stacks and balance-of-plant components.

Technical data
Spindle model: DK-GF180B
Structural form: Two-stage supercharging
Flow range (g/s): 13-245
Speed range (rpm): 30000-95000
Voltage (VDC): 450-750
Air compressor weight (kg): 15.2
Intake air temperature (°C): -30~45
Bearing type: Air suspension bearing
Maximum compression ratio: 3.5
Max. motor power (kW): 30
Start-stop life (times): 300000
Controller weight (kg): 7.3
Protection level: IP67

Specifications

• Model: DK-GF180B
• Structural form: Two-stage supercharging
• Flow range: 13–245 g/s
• Speed range: 30,000–95,000 rpm
• Voltage: 450–750 VDC
• Air compressor weight: 15.2 kg
• Controller weight: 7.3 kg
• Intake air temperature: -30 °C to 45 °C
• Bearing type: Air suspension (air bearings, oil-free)
• Maximum compression ratio: 3.5
• Maximum motor power: 30 kW
• Start-stop life: 300,000 cycles
• Protection level: IP67
