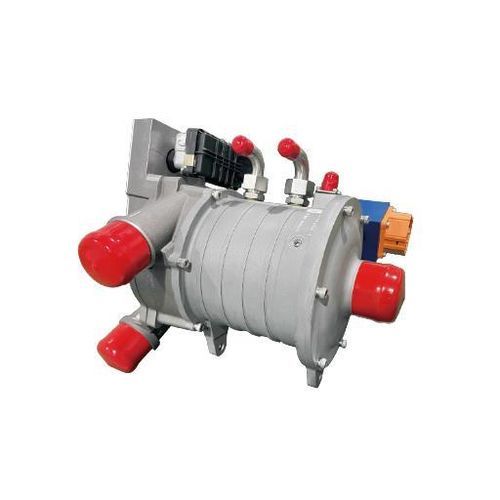

Centrifugal compressor DK-GF180A-T

airDCstationary

Overview
The DK-GF180A-T is a two-stage air compressor integrating a VNT (variable nozzle turbine) energy-recovery stage for fuel-cell air supply. It operates across 15–245 g/s, reaches a maximum pressure ratio of 3.8 and can improve energy efficiency by up to 30% while meeting vehicle integration and IP67 environmental protection requirements.

Technical data
Spindle Model: DK-GF180A-T
Structural form: Two-stage compression + Energy recovery + VNT
Flow range (g/s): 15-245
Speed range (rpm): 30000-95000
Voltage (VDC): 450-750
Air compressor weight (kg): 16.5
Intake air temperature (°C): -30~45
Bearing type: Air suspension bearing (oil-free)
Maximum compression ratio: 3.8
Max. motor power (kW): 30
Maximum energy-efficiency improvement: 30%
Start-stop life (cycles): 300000
Controller weight (kg): 7.3
Protection level: IP67

Applications

• Air supply for fuel-cell systems in automotive and stationary applications requiring high-efficiency air management.
• Integration into vehicle and industrial architectures demanding IP67 protection and long start-stop life.

Characteristics / specifications

• Model: DK-GF180A-T
• Architecture: Two-stage compression with VNT energy recovery
• Flow range: 15–245 g/s
• Speed range: 30,000–95,000 rpm
• Voltage: 450–750 VDC
• Max motor power: 30 kW
• Max compression ratio: 3.8
• Air bearing: Air suspension (oil-free)
• Protection: IP67
• Weights: Compressor 16.5 kg; Controller 7.3 kg
• Intake temperature range: -30 °C to 45 °C
• Start-stop life: 300,000 cycles
• Estimated max energy-efficiency improvement: up to 30%
