Elastomer coupling MKE seriesshaftfor machinescompact
Add to favorites
Compare this product
Characteristics
- Type
- elastomer
- Product applications
- shaft, for machines
- Construction
- compact, metal bellows, stainless steel
- Torque
Min.: 0.7 Nm
(0.516294 ft.lb)Max.: 15 Nm
(11.063432 ft.lb)
Description

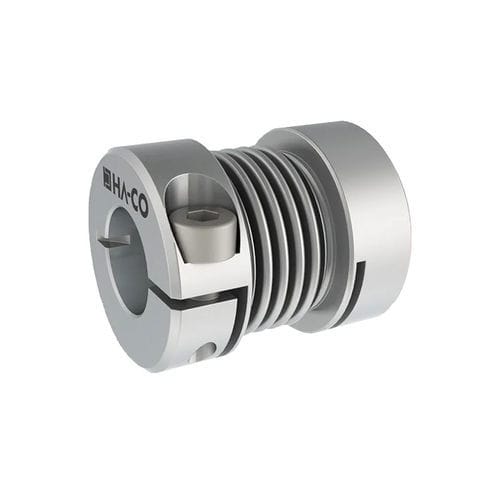

Completely in stainless steel and therefore ideally suited for machines in the medical and food industry: The MKE stainless steel coupling. The stainless steel clamping hubs are welded to the compact metal bellows. Due to their small size, the couplings have a low mass moment of inertia.
Shaft diameter up to 25 mm
Completely in stainless steel, temperature resistance up to 250°C
Features
• Absolutely backlash-free
• Completely stainless steel
• Small installation space
• Very low moment of inertia
• Easy for assembly
• Maintenance-free
• Very high temperature resistance (250°C)
