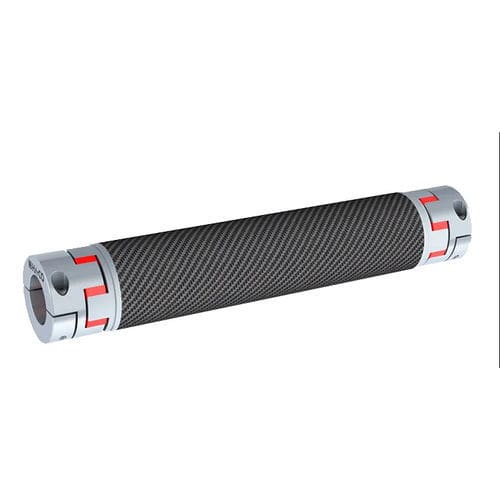

Steel shaft SWC series

carbonaluminumelastomer

Equipped with one or two attached metal bellow couplings or elastomeric couplings. High offset compensation of the connected shaft ends and best torsional stiffness. With one or two attached couplings High misalignment compensation High-tech execution in CFK Available in the following combinations: SWC-BB (Bellow-Bellow) Equipped with only two attached metal bellow couplings. Offset compensation of the connected shaft ends and best torsional stiffness. SWC-BK (Bellow-Clamping) Equipped with only one attached metal bellow coupling. Offset compensation of the connected shaft ends and best torsional stiffness. SWC-EE (Elastomer) Equipped with two attached elastomeric couplings. Misalignment compensation of the connected shaft ends. Good torsional stiffness and easy to mount. SWC-EK (Elastomer-Clamping) Equipped with only one attached elastomer coupling. Misalignment compensation of the connected shaft ends. Good torsional stiffness and easy to mount. The synchronous shafts of the SWC series differ from the SWA, SWE and SWS series by the intermediate tube. This is made of carbon fibre and is manufactured according to the customer's requirements. Due to the type of fibre, the variety of winding possibilities and the design of the tube, any desired characteristic of the synchronous shaft can be achieved. Our special highlight is the calculation, design and production of synchronous shafts in which the intermediate tube is made of carbon fibre. Superior advantages of this high-tech material over steel and aluminium shafts are: low weight extreme rigidity highest stability low thermal expansion Corrosion resistance
