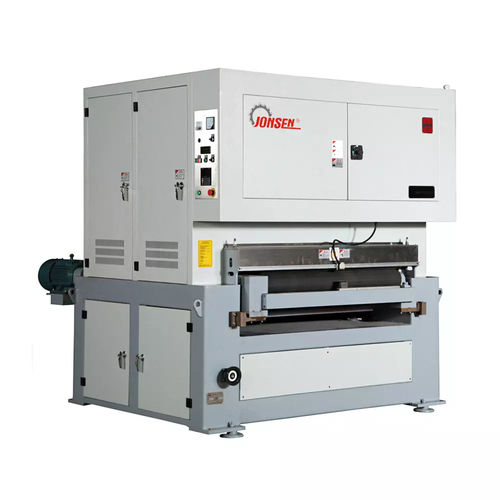

Finishing finishing machine SG1300 series

for stainless steelautomatic

One or more units of SG1300-JS/SG1300-2JS machine(s) are able to form a stainless steel sheet/coil surface finishing machine line. It utilizes wide abrasive belt heads with oil to achieve optimal result of surface finishing (Most commonly seen surface finishing types are No.4 and Hairline). The surface finishing created is more delicate and smooth comparing to dry operation machine. The whole machine line usually consists of one or multiple SG1300 series machines, connecting roller conveyors between machines, degreasing machine, cleaning and drying machine, and lastly surface laminating machine. For coil to coil finishing line, it is composed by decoiler, straightener, and coiler. Two side finishing is also available with additional “bottom sanding” SG1300 series machine. Machine characteristic overview: Oil/wet operation No.4 and Hairline (HL) machines: - Large dimeter rubberized contact wheels for optimal surface contacting - SKF precision bearings are used to achieve optimal performance and durability - Jonsen patented automatic wide abrasive belt tracking mechanism Rubberized roller type conveyor to provide smooth feeding Smooth and smart integration between SG1300 machine(s) and degreasing, cleaning, drying, and laminating machines to achieve one-pass processing. Real time process monitoring system is available Technical Datasheet Maximum working width available 1300/1600 / 2100mm Line speed to the wide abrasive belt (depend on the type of surface finishing) 2-18m / min Working thickness range 0.5-40mm Perimeter of the wide abrasive belt 2200/2620mm Surface finishes available No.4, Hairline (HL)
