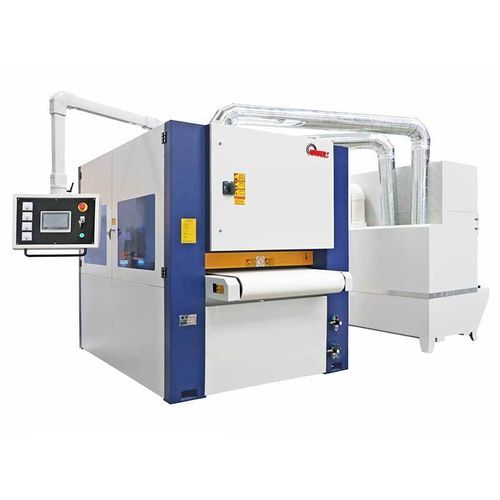

Belt deburring machine SGGP1000

abrasive beltedge roundingfinishing

Product Description
SGGP1000 is a versatile machine for deburring, edge rounding and surface finishing of metal parts produced by laser cutting, punching or shearing. Two wide abrasive belt heads remove larger burrs or perform whole-surface finishing (e.g. No.4 finish). The planetary abrasive barrel station, equipped with four abrasive barrels (optional 6), focuses on edges and contours to produce consistent edge radii while minimizing impact on flat surfaces. The machine processes small and medium burrs with much higher consistency and throughput than manual methods. Integrated dust extraction prevents metal dust from dispersing into the workspace.

Highlights:

• Dry operation
• Two wide abrasive belt heads for heavy burr removal or surface finishing
• Planetary abrasive barrel station for further edge rounding — 4 barrels (option for 6) with planetary rotation
• Vacuum conveyor table to secure small parts; minimum part size 60×60 mm
• Planetary barrel station concentrates on edges and contours with minimal effect on flat surfaces
• Capable of processing minor formed/profiled parts
• Long consumable life
• Straightforward, user-friendly operation
• Auxiliary LED lighting inside machine
• Built-in dust collection hood and extraction

Optional configuration:

• Model SP1000 without wide abrasive belt heads — for parts with good cutting quality and only minor burrs
• Additional wide abrasive belt head(s) at the rear for straight-line surface finishing (e.g. one belt head after the planetary station)
• Working widths of 1300 mm or 1500 mm available
• Magnetic conveyor table recommended for predominantly small ferrous parts

Ideal parts:

• Carbon steel, stainless steel, aluminum, copper and similar metals
• Parts with protective vinyl film (machine preserves the film and protects the underlying surface)
• Working thickness range: 0.8 mm–50 mm
• Carbon steel parts requiring large edge radii

Technical specifications:

• Model: SGGP1000
• Maximum working width: 1000 mm
• Machine opening (working thickness range): 0.8–50 mm
• Conveyor feeding rate: 0.5–3 m/min
• Number of abrasive barrels: 4 (option for 6)
• Abrasive media: abrasive barrels, wide abrasive belts
• Abrasive barrel station power: 5.5 kW
• Wide abrasive belt head power: 11 kW
• Machine weight: 5000 kg
• Vacuum conveyor table available to handle small parts down to 60×60 mm
