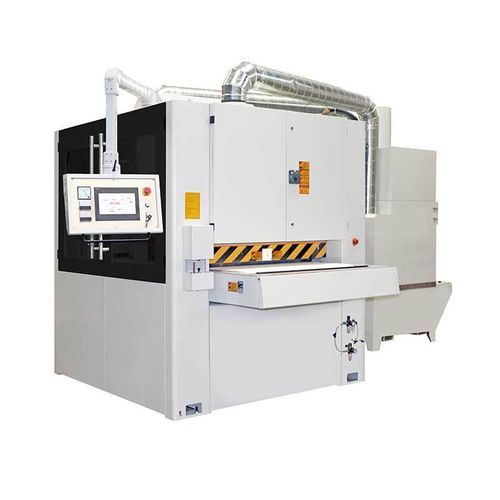

Electric chamfering and deburring machine SGP1000

stationarybarrelfor aluminum

Applications
SGP1000 is a versatile machine designed for deburring, edge rounding and surface finishing of metal parts. The wide abrasive belt head removes larger burrs and performs line or surface finishing (for example No.4 finish). The planetary abrasive barrel station with six abrasive barrels (3 clockwise, 3 counter-clockwise) rounds edges and contours while minimizing effect on flat surfaces. Suitable for parts from laser cutting, punching, shearing and similar processes with small-to-medium burrs and sharp edges. Integrated dust extraction prevents metal dust dispersion and improves shop safety and cleanliness.

Highlights

• Dry operation
• Wide abrasive belt head for heavy burr removal or line/surface finishing
• Planetary abrasive barrel station with 6 barrels and alternating rotation for consistent edge rounding
• Vacuum conveyor table to handle small parts, minimum part size 50 x 50 mm
• Barrel station focuses on edges and contours with minimal impact on whole surface
• Capable of processing minor formed/profiled parts
• Long consumable life
• Simple, user-friendly operation
• Auxiliary LED lighting inside the machine
• Dust collection hood installed inside the machine

Optional configuration

• Model SP1000: without wide abrasive belt head, for parts with good cutting quality and only minor burrs
• Additional front wide abrasive belt head(s) for heavier burr removal or high-hardness alloys (e.g. 2 wide belt heads)
• Additional rear wide abrasive belt head(s) after the planetary station for straight-line surface finishing (e.g. 1 wide belt head)
• Working widths 1300 mm and 1500 mm available

Ideal parts

• Carbon steel, stainless steel, aluminum, copper and similar metals
• Parts with protective vinyl film (machine does not damage the film, protecting the surface underneath)
• Working thickness range: 0.5 mm – 100 mm
• Carbon steel parts requiring large edge radii

Technical datasheet
Maximum working width: 1000 mm
Abrasive media: abrasive barrel; wide abrasive belt
Machine opening (thickness capacity): 0–100 mm
Abrasive barrel station power: 5.5 kW
Conveyor feeding rate: 0.5–3 m/min
Wide abrasive belt head power: 11 kW
Number of abrasive barrels: 6
Machine weight: 2500 kg

Technical specifications

• Model: SGP1000
• Maximum working width: 1000 mm (options: 1300 mm, 1500 mm)
• Machine opening (thickness capacity): 0–100 mm
• Working thickness range: 0.5 mm – 100 mm
• Abrasive media: abrasive barrel and wide abrasive belt
• Abrasive barrel station power: 5.5 kW
• Wide abrasive belt head power: 11 kW
• Number of abrasive barrels: 6 (planetary arrangement: 3 clockwise, 3 counter-clockwise)
• Conveyor feeding rate: 0.5–3 m/min
• Minimum part size (vacuum conveyor): 50 x 50 mm
• Machine weight: 2500 kg
• Operation: dry operation
• Features: vacuum conveyor table, auxiliary LED lighting, internal dust collection hood, long consumable life, user-friendly operation
