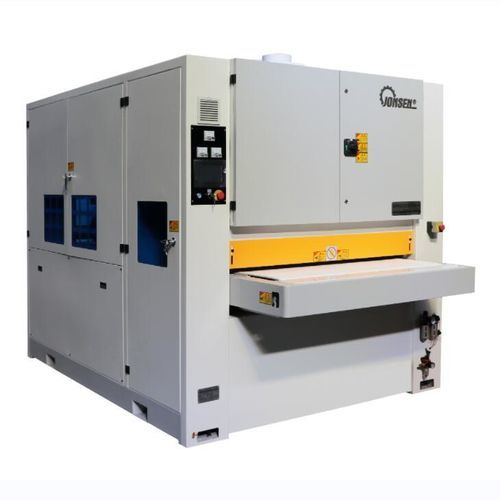

Electric chamfering and deburring machine SGP1300

stationarystraight edgesfor metal

Function
Designed for batch deburring, edge rounding (chamfering) and surface brushing of parts from turret presses and laser cutting lines. The main finishing section combines a powerful wide abrasive belt with sets of flexible filament brush rollers to provide continuous, uniform material removal and surface conditioning. The vacuum conveyor enables stable handling of mixed-format parts of the same thickness and prepares parts for subsequent bending, painting or welding operations.

Key features

• Welded steel frame with shot-blasted and powder-coated finish for high rigidity and long service life.
• Powerful wide abrasive-belt pre-grinding station for heavy burr removal or surface brushing; servo lift for precise adjustment.
• Eight flexible filament brush-roller assemblies, with adjacent groups rotating in opposite directions to ensure abrasive contact at every edge and hole.
• Vacuum conveyor platform capable of processing small, low-porosity parts from 60×60 mm.
• High-speed rotating components equipped with imported bearings for extended durability.
• Targeted edge and hole-edge processing with minimal impact on finished surfaces; protective-film panels can be processed without damaging the film.
• Suitable for lightly formed surfaces and machined surface parts.
• Long-life consumables with even wear characteristics.
• Intuitive operation with built-in LED interior illumination for process observation.
• Touchscreen operator interface for easy recipe and parameter control.

Optional configurations

• SP1300: configuration with filament brush rollers only (no abrasive belt) recommended for copper, aluminium or well-cut metal sheets requiring brushing without aggressive belt grinding.
• SGP1000: multiple heavy-duty wide abrasive-belt stations plus six brush rollers for heavy burr pre-processing (e.g. large slag from laser/plasma cutting) or very hard alloys.
• Alternate layout placing wide-belt brushing after the flexible brush-roller section for parts requiring chamfered-edge brushing.
• Optional 1600 mm working-width flexible finishing configuration available.

Suitable for

• Carbon steel, stainless steel, aluminium, copper and similar metals.
• Parts with protective film can be processed while preserving the film to the greatest extent.
• Thickness range: 0.5 mm–500 mm; suitable for deburring parts up to 1300 mm width.
• Pre-paint large chamfer preparation and surface conditioning prior to coating.

Specifications
Work width: 1300 mm
Abrasive media: flexible filament brush rollers and wide abrasive belt
Machine opening: 0–50 mm
Number of flexible brush rollers: 8
Conveyor speed: 0.8–5 m/min
Approx. weight: 5000 kg

Characteristics / Technical specifications

• Model: SGP1300
• Processing width: 1300 mm
• Applicable materials: carbon steel, stainless steel, aluminium, copper, etc.
• Conveyor: vacuum-adsorption platform for multi-size batches of the same thickness
• Main finishing units: powerful wide abrasive belt + eight flexible filament brush-roller assemblies
• Feed speed range: 0.8–5 m/min
• Machine opening range: 0–50 mm
• Machine weight: approx. 5000 kg
• Control: touchscreen operator interface with built-in LED observation lighting
• High-efficiency, clean processing suitable for bending, painting and welding downstream operations
